Hyundai Santa Fe (TM): Front Door / Components and components location

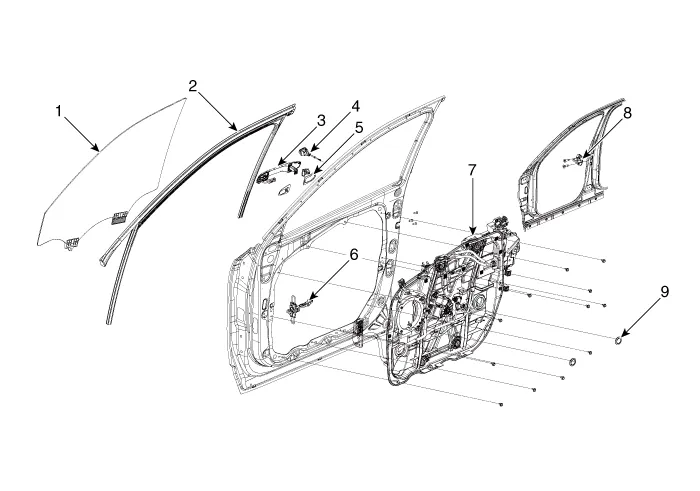

| Components |
| 1. Front door
window glass 2. Front door window glass run assembly 3. Front door outside handle 4. Front door lock assembly 5. Front door outside handle pad |
6. Front door
checker assembly 7. Front door module assembly 8. Front door striker 9. Front door module plug hole |
Adjustment Glass Adjustment • Check the glass run channel for damage or deterioration, and replace it if necessary.
