Hyundai Santa Fe: Maintenance / Tires and wheels
Hyundai Santa Fe (TM) 2019-2025 Owner's Manual / Maintenance / Tires and wheels
WARNING
Tire failure may cause loss of vehicle control resulting in an accident. To reduce risk of SERIOUS INJURY or DEATH, take the following precautions:
- Inspect your tires monthly for proper inflation as well as wear and damage.

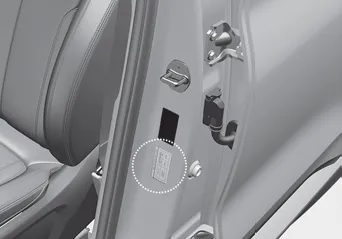

- The recommended cold tire pressure for your vehicle can be found in this manual and on the tire label located on the driver’s side center pillar. Always use a tire pressure gauge to measure tire pressure. Tires with too much or too little pressure wear unevenly causing poor handling.
- Check the pressure of the spare every time you check the pressure of the other tires on your vehicle. • Replace tires that are worn, show uneven wear, or are damaged. Worn tires can cause loss of braking effectiveness, steering control, or traction.
- ALWAYS replace tires with the same size, type, construction and tread pattern as each tire that was originally supplied with this vehicle. Using tires and wheels other than the recommended sizes could cause unusual handling characteristics, poor vehicle control, or negatively affect your vehicle’s Anti-Lock Brake System (ABS) resulting in a serious accident.
- Tire care
- Recommended cold tire inflation pressures
- Check tire inflation pressure

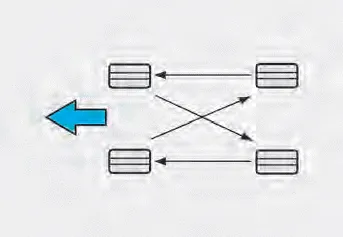

- Tire rotation
- Wheel alignment and tire balance

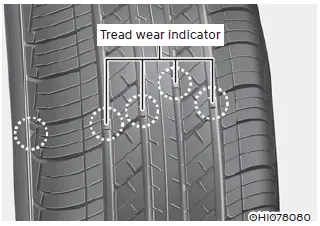

- Tire replacement
- Wheel replacement. Tire traction. Tire maintenance
- Tire sidewall labeling
- Low aspect ratio tires
Reset items
T..
Tire care
For proper maintenance, safety, and maximum fuel economy, you must always maintain
recommended tire inflation pressures and stay within the load limits and weight
distribution recommended for your vehicle...
