Hyundai Santa Fe: Surround View Monitor (SVM) / Surround View Monitor (SVM) Unit. Repair procedures

Hyundai Santa Fe (TM) 2019-2024 Service Manual / Advanced Driver Assistance System (ADAS) / Surround View Monitor (SVM) / Surround View Monitor (SVM) Unit. Repair procedures

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the carash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel")
3.
Remove the crash pad center panel.
(Refer to Body - "Crash Pad Center Panel")
4.

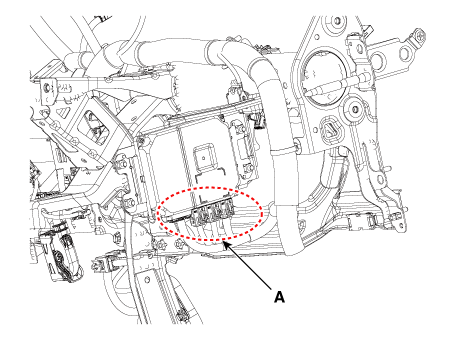

Disconnect the SVM unit connector (A).

5.

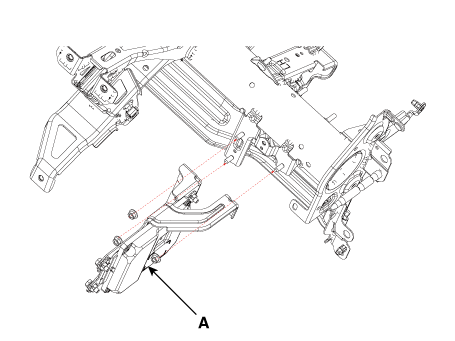

Loosen the mounting nuts and remove the SVM Unit (A).

Installation
1.
Install the SVM unit.
2.
Install the crash pad center panel.
3.
Connect the negative (-) battery terminal.
