Hyundai Santa Fe: Smart key / Locking your vehicle (Touch sensor type)
1. Close all of the doors, the hood and the liftgate.

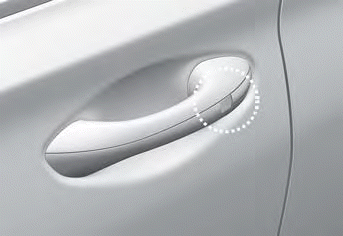

2. Make sure you have the smart key in your possession and touch either the touch
sensor on the door handle (the engraved part) or press the Door Lock button (1)
on the smart key within 1 second.
3. The doors, hood and trunk are locked.
The chime will sound once and the hazard warning lights will blink.
- The door handle button will only operate when the smart key is within
28~40 inches (0.7~1 m) from the outside door handle.
- Make sure the doors are locked by pulling the door handle.
- If you locked the door with the touch sensor on the door handle, the
doors cannot be unlocked with the sensor within 3 seconds.
Even though you press the outside door handle button, the doors will not lock
and the chime will sound for three seconds if any of the following occur:
- The Smart Key is in the vehicle.
- The Engine Start/Stop button is in ACC or ON position.
- Any door except the liftgate is open.
CAUTION
When you leave your vehicle with the smart key, make sure to press the button
on the front door handle or touch the touch sensor on the front door handle to lock
the doors after close all of the doors, the hood and the trunk. If you do not press
the button or touch the touch sensor firmly, the doors might not be locked so please
use caution.
WARNING
Do not leave the Smart Key in your vehicle with unsupervised children. Unattended
children could press the Engine Start/ Stop button and may operate power windows
or other controls, or even make the vehicle move, which could result in serious
injury or death.
To lock :
1. Close all doors, engine hood and liftgate.
2. Carry the smart key.
3. Either press the door handle button or press the Door Lock button (1) on the
smart key...
1. Make sure you have the smart key in your possession.
2. Press the Door Unlock button (2) on the smart key, press the button on the
front door handle or touch the door unlock sensor inside of the front door handle
to unlock the doors...
