Hyundai Santa Fe: Battery / For best battery service
- Keep the battery securely mounted.
- Keep the battery top clean and dry.
- Keep the terminals and connections clean, tight, and coated with petroleum
jelly or terminal grease.
- Rinse any spilled electrolyte from the battery immediately with a solution
of water and baking soda.
- If the vehicle is not going to be used for an extended time, disconnect
the battery cables.
Information
To check the batteries, open the cover (B). For 7-seater, the clips (A) must
be removed first to open the cover.

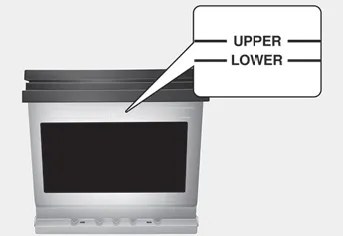

Information - For batteries marked with UPPER and LOWER
If your vehicle is equipped with a battery marked with LOWER (MIN) and UPPER
(MAX) on the side, you should check the electrolyte level.
The electrolyte level should be between LOWER (MIN) and UPPER (MAX). When
the electrolyte level is low, add distilled (or de-mineralized) water. (Never add
sulfuric acids or other electrolyte). Be careful not to spill distilled (or demineralized)
water over the battery surface or other adjacent components.
Also, do not overfill the battery cells.
If not, it may corrode the battery or other components. Finally, securely
close the cell cap. However, we recommend you to contact an authorized HYUNDAI dealer
for better battery service.
WARNING
To prevent SERIOUS INJURY or DEATH to you or bystanders, always follow these
precautions when working near or handling the battery:
Always read and follow instructions carefully when handling a battery...
1. MF68L-DIN : The HYUNDAI model name of battery
2. 12V : The nominal voltage
3. 68Ah (20HR) : The nominal capacity (in Ampere hours)
4. RC 110min : The nominal capacity (in Ampere hours)
5...
