Hyundai Santa Fe: Rear Glass Defogger / Components and components location

Hyundai Santa Fe (TM) 2019-2025 Service Manual / Body Electrical System / Rear Glass Defogger / Components and components location

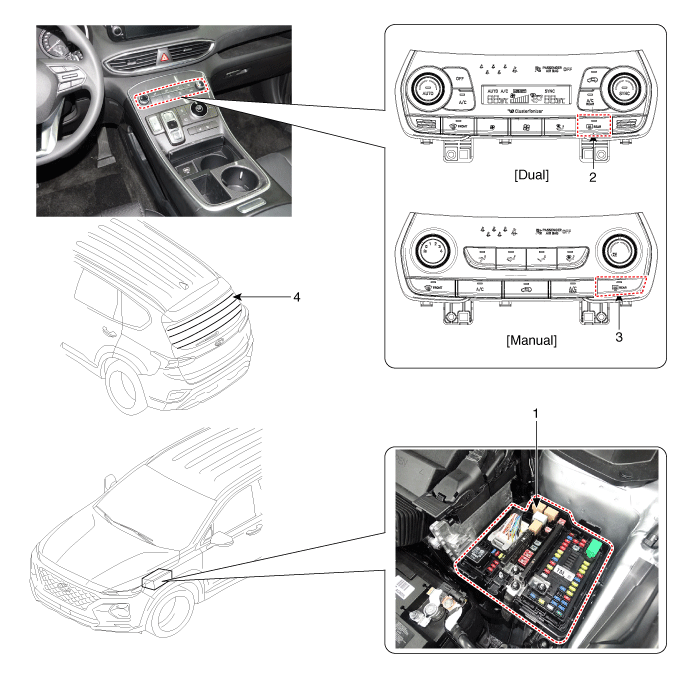

Component Location

1. Rear glass defogger relay (Buil-in engine room relay box)
2. Rear glass defogger switch (Dual type)

3. Rear glass defogger switch (Manual type)
4. Rear glass defogger
