Hyundai Santa Fe (TM): Interior lights / Rear lamps

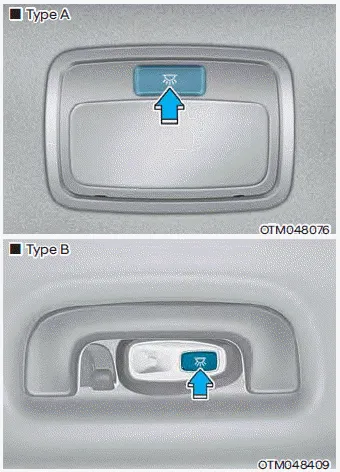

Rear room lamp switch :

Press this button to turn the room lamp on and off.

    Front map lamp ( ): Touch either icons to turn the map lamp on or off. This light produces a spot beam for convenient use as a map lamp at night or as a personal lamp for the driver and the front passenger.

    Push the switch to turn the light on or off. : The lamp will turn on if this button is pressed. : The lamp will turn off if this button is pressed.
