Hyundai Santa Fe (TM): Air conditioning System / Evaporator Temperature Sensor. Description and operation

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Heating,Ventilation And Air Conditioning / Air conditioning System / Evaporator Temperature Sensor. Description and operation

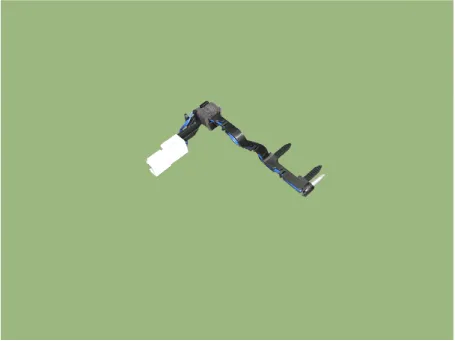

Description
The evaporator temperature sensor will detect the evaporator core temperature and interrupt compressor relay power in order to prevent evaporator from freezing by excessive cooling.

    Inspection    • Before measuring the pressure of the refriferant line, check whether the refrigerant amount is charged in accordance with the specified charging amount.

    Inspection 1. Turn the ignition switch OFF. 2. Disconnect the evaporator temperature sensor connector.
