Hyundai Santa Fe (TM): Convenience features / Automatic climate control system

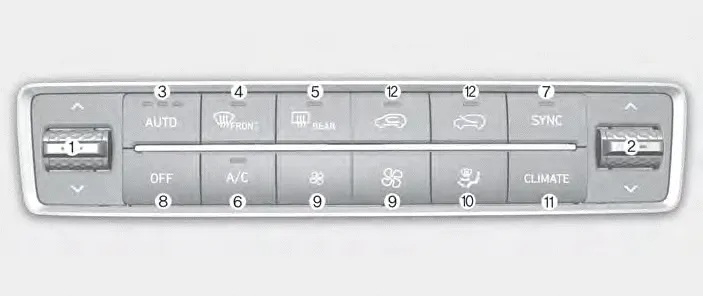

The actual shape of air conditioner may differ from the illustration.
1. Driver’s temperature control knob
2. Passenger’s temperature control knob
3. AUTO (automatic control) button
4. Front windshield defroster button
5. Rear window defroster button
6. Air conditioning button
7. SYNC button
8. OFF button
9. Fan speed button
10. Mode selection button
11. Climate control button
12. Air intake control button
- Automatic heating and air conditioning
- Manual heating and air conditioning
- System operation
- System maintenance
Cabin air filter [A] : Outside air, [B] : Recirculated air, [C] : Cabin air filter, [D] : Blower, [E] : Evaporator core, [F] : Heater core The cabin air filter is installed behind the glove box.
The Automatic Climate Control System is controlled by setting the desired temperature. 1. Press the AUTO button. (3) The modes, fan speeds, air intake and air-conditioning will be controlled automatically by the temperature setting you select.
