Hyundai Santa Fe (TM): Infotainment system / Antenna

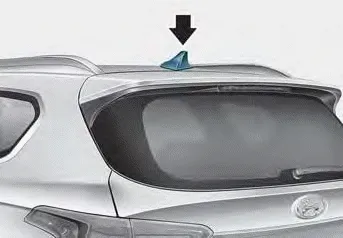

Shark fin antenna

The shark fin antenna receives transmitted data. (for example: AM/FM, DAB, GPS)

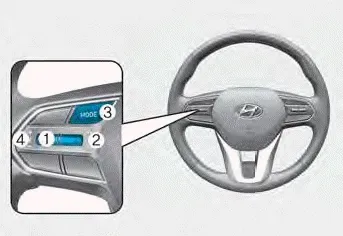

Steering wheel remote controls

NOTICE

Do not operate multiple audio remote control buttons simultaneously.

VOLUME (VOL + / VOL -) (1)

• Rotate the VOLUME scroll up to increase volume.
• Rotate the VOLUME scroll down to decrease volume.

SEEK/PRESET (˄/˅) (2)

If the SEEK/PRESET switch is pressed up or down and held for 0.8 second or more, it will function in the following modes:

• RADIO mode

It will function as the AUTO SEEK select button. It will SEEK until you release the button.

• MEDIA mode

It will function as the FF/RW button.

If the SEEK/PRESET switch is pressed up or down, it will function in the following modes:

• RADIO mode

It will function as the PRESET STATION UP/DOWN button.

• MEDIA mode

It will function as the TRACK UP/ DOWN button.

MODE (3)

Press the MODE button to toggle through Radio or Media modes.

MUTE ( ) (4)

• Press the MUTE button to mute the sound.
• Press the MUTE button again to activate the sound.

Information

See additional information in supplied Infotainment Manual.
