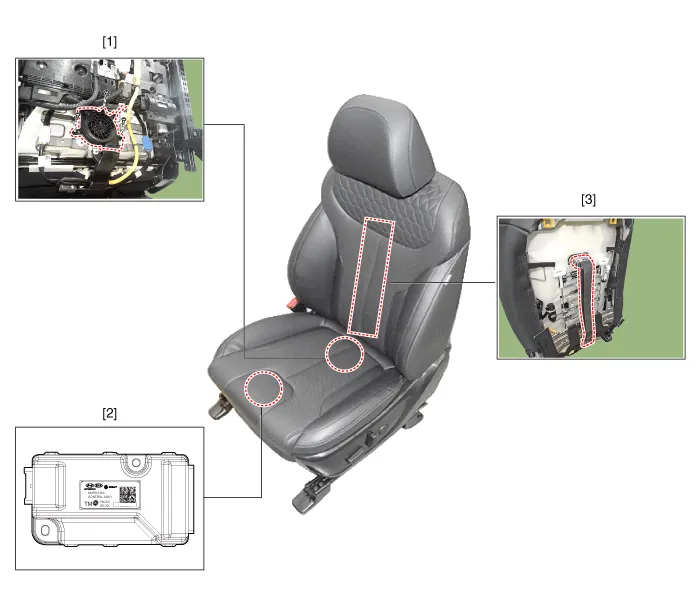

| Component Location |

| 1. Air ventilation
seat blower 2. Air ventilation seat control unit (Passenger only) |
3. Air ventilation
seat duct |
Inspection Front Seat 1. Check for continuity and measure the resistance between terminals. No.
Circuit Diagram No. Connector A Connector B Connector C 1 Vent heater ECU _ IGN1 Driver vent switch LED (Low) Vent / heater power 2 Driver blower power Driver vent switch LED (Mid) Driver heater power 3 Driver blower speed Driver vent switch LED (High) Driver heater ground 4 Driver RPM input Driver NTC (+) Driver / Assist, Vent / Heater ground 5 Driver heater switch - vent / heater power 6 Driver vent switch Illumination (-) - 7 Illumination (+) Driver NTC (-) Assist heater power 8 Driver heater LED (Low) Driver blower ground - 9 Driver heater LED (Mid) Driver vent led (Low) Assist heater ground 10 Driver heater LED (High) Driver vent led (Mid) Driver / Assist, Vent / Heater ground 11 Vent seat unit IGN 2 Driver vent led (High) 12 Assist blower power Assist NTC (+) 13 Assist blower speed FATC PWM 14 Assist blower RPM input - 15 Assist heater switch Assist NTC (-) 16 Assist vent switch Assist blower ground 17 Detent 18 Assist heater LED (Low) 19 Assist heater LED (Mid) 20 Assist heater LED (High)
