Hyundai Santa Fe (TM): Hydraulic System / 26 Brake Control Solenoid Valve (26/B_VFS). Description and operation

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Automatic Transaxle System (SBC) / Hydraulic System / 26 Brake Control Solenoid Valve (26/B_VFS). Description and operation

Description

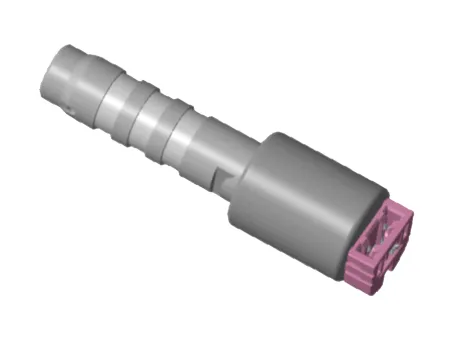

•	26 brake control solenoid valve(26/B_VFS) is attached to the valve body.

•	This variable force solenoid valve directly controls the hydraulic pressure inside the 26Brake.

❮Torque Converter Control Solenoid Valve (T/CON_VFS). Repair procedures

Inspection • Refer to the DTC manual for the check procedure.

26 Brake Control Solenoid Valve (26/B_VFS). Components and components location❯

Component Location (1)_Valve Body Cover 1. Valve Body Cover 2. Valve Body Cover Gasket 3. Solenoid Valve Connector Component Location (2)_Solenoid Valve 1.
