Hyundai Santa Fe: 4WD Control System / Components and components location

Hyundai Santa Fe (TM) 2019-2025 Service Manual / 4 Wheel Drive (4WD) System / 4WD Control System / Components and components location

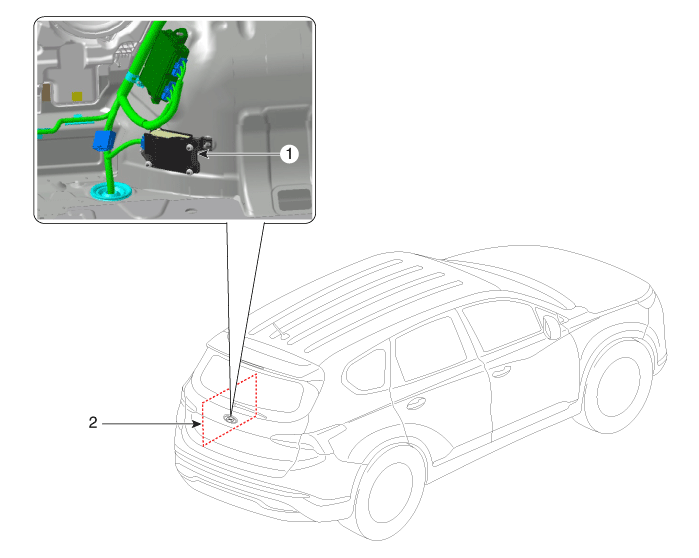

Components Location

1. 4WD ECU
2. Luggage side trim [Left side]

    Description and operation

    Description The AWD ECU distributes the driving force to the front/rear wheel through controlling the multi plate clutch on the AWD transfer case by analyzing the input information, i...

    Flow diagram

    ..
