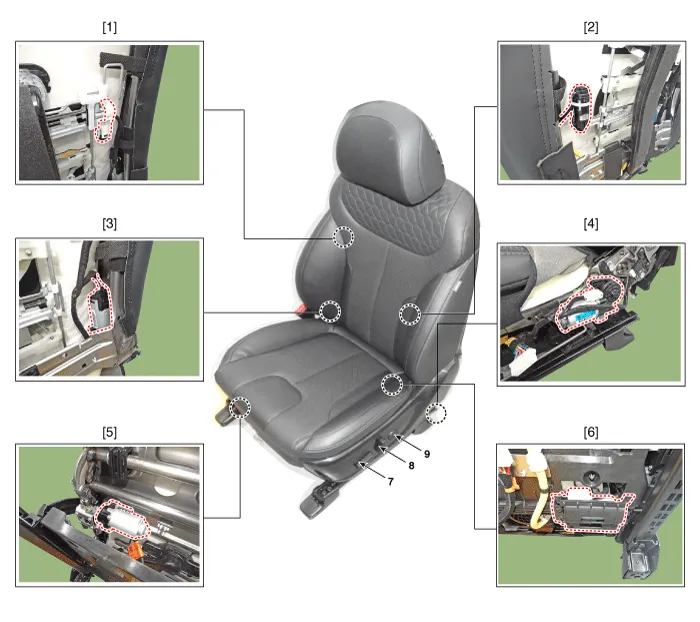

Component Location

1. Lumber support motor (Vertical)
2. Lumbar support motor (Horizontal)
3. Reclining motor
4. Rear height motor
5. Front height motor
 6. Slide motor
7. Power seat switch
8. Reclining switch
9. Lumbar support switch

    Seat Electrical

    ..

    Inspection

    Inspection Basic Inspection 1. Basic inspection is performed as follows. (1) Check indicator after entering self - diagnosis mod...
