Hyundai Santa Fe (TM): Wireless Power Charger System / Wireless Charging Lamp. Repair procedures

Removal

Handling wireless charging system parts by wet hands may cause electric shock.

1.	Disconnect the negative (-) battery terminal.

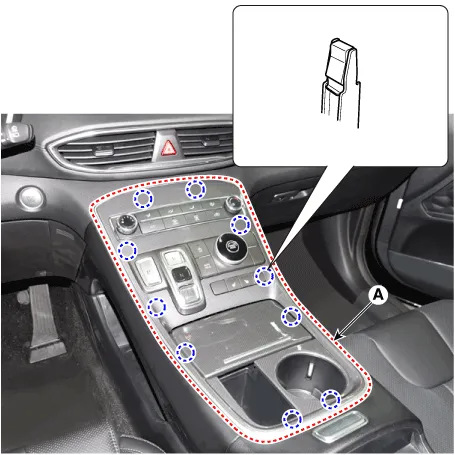

2.	Remove the console upper cover (A).

3.	Press the lock pin, separate the connectors (A).

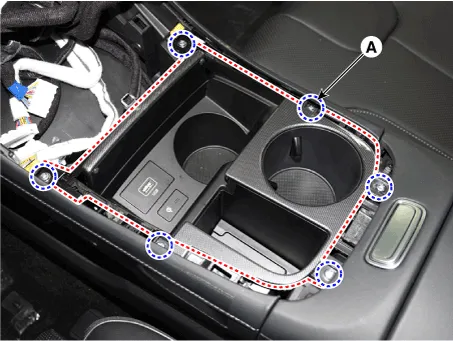

4.	Remove the cup holder assembly (A) after loosening mounting screws.

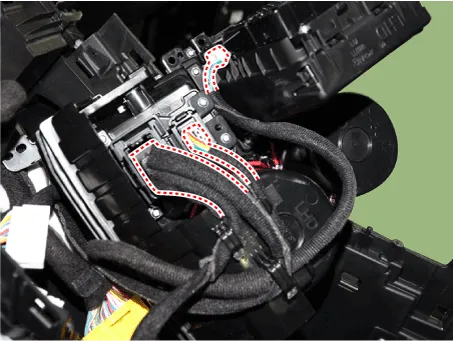

5.	Disconnect WPC, USB, WPC lamp connectors.

6.	Remove the wireless charging lamp (A) by pushing the fixed clip in the direction of the arrow as lillustration below

Installation

1.	Install the wireless charging lamp.

2.	Connect the wireless charging lamp connector.

3.	Install the floor console upper cover assembly.

4.	Connect the negative (-) battery terminal.
