Hyundai Santa Fe (TM): AVN System / USB Jack. Schematic diagrams

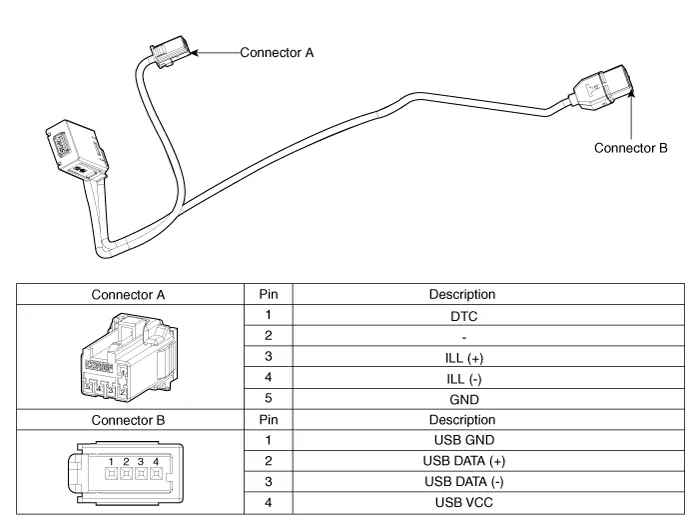

| Circuit Diagram |
Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3, through the vehicle's sound system when it is linked to this jack.
Removal • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Auto Defogging Actuator. Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Auto Defogging Actuator. Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 6.
