Removal

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.

•
Take care not to bend or scratch the trim and panels.
1.

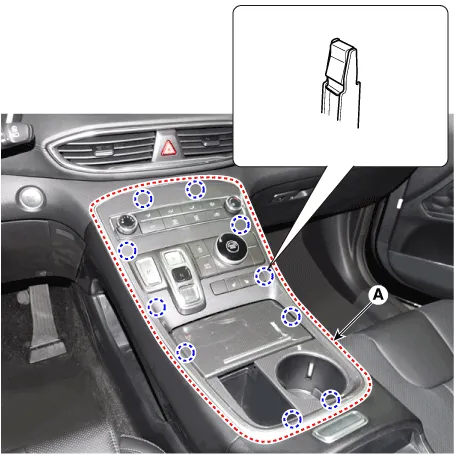

Remove the console upper cover (A).
2.

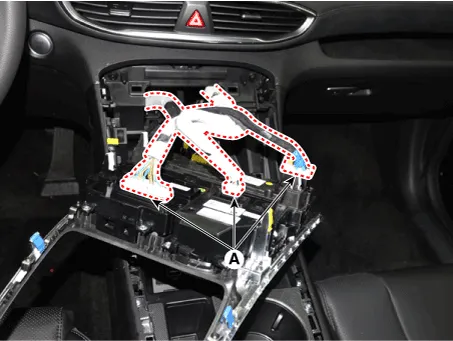

Press the lock pin, separate the connectors (A).
3.
Remove the cup holder assembly (A) after loosening mounting screws.
4.

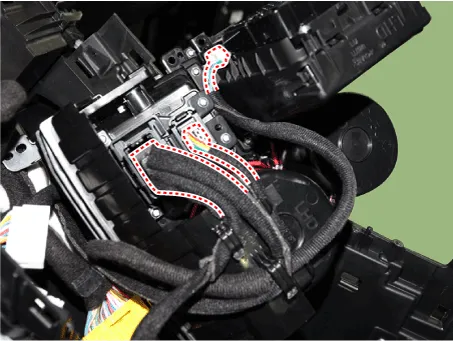

Disconnect WPC, USB, WPC lamp connectors.
5.

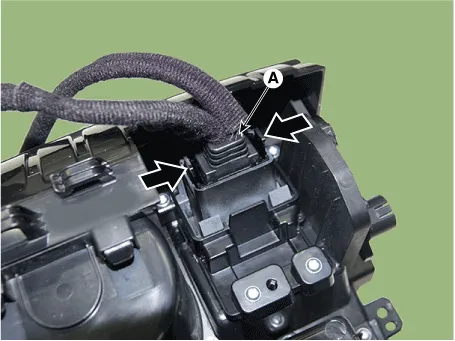

Remove the USB (A) by pushing the fixed clip in the direction of the arrow as lillustration below.
Installation
1.
Install the USB.
2.
Install the cup holder assembly.
3.
Install the floor console upper cover.
4.
Connect the negative (-) battery connector.

•
Make sure the connector are connected in properly.
•
Check the AVN system

    Circuit Diagram
