Hyundai Santa Fe (TM): Parking Distance Warning (PDW) / Ultrasonic Sensor. Schematic diagrams

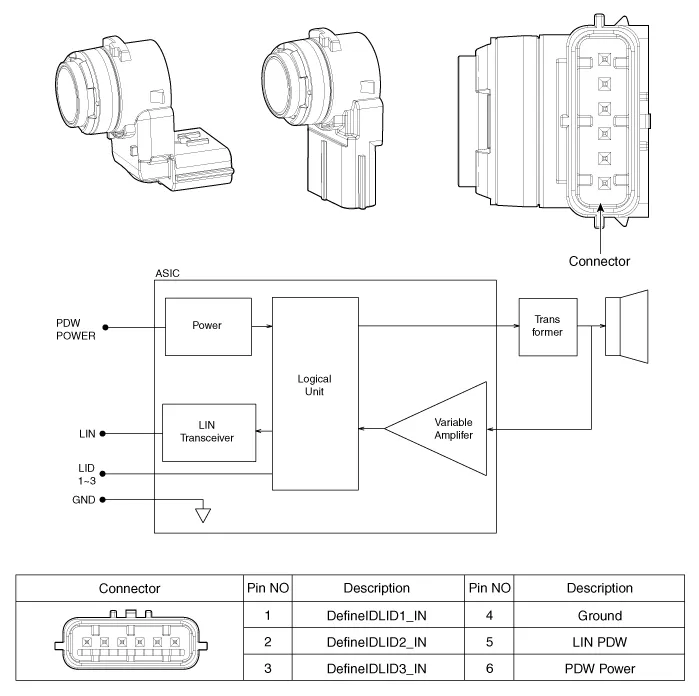

| Schematic Diagrams |
Specifications [ADAS_PRK Application Specification (MOBIS)] Item Specification Ultrasonic sensor Voltage rating DC 12V Detecting range 40cm ~ 120cm Operating voltage DC 9V ~ 16V Operation current MAX.
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front/rear bumper.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Heater Core. Repair procedures
Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the heater and blower assembly. (Refer to Heater - "Heater Unit") 3. Loosen the mounting screws and remove the heater core cover (A).
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Power Mosfet (DATC). Repair procedures
Inspection 1. Turn the ignition switch ON. 2. Manually operate the control switch and measure the voltage of the blower motor. 3. Select the control switch to raise the voltage until high speed.
