Hyundai Santa Fe (TM): Hydraulic System / Torque Converter Control Solenoid Valve (T/CON_VFS). Description and operation
| Description |
| • |

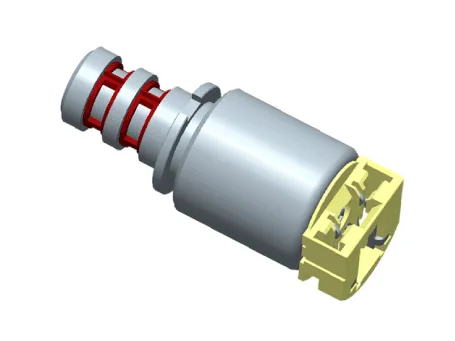

Torque converter control solenoid valve (T/CON_VFS) is attached to the
valve body.
|
| • |
This variable force solenoid valve indirectly controls the hydraulic
pressure inside the torque converter.
|
Removal • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Component Location (1)_Valve Body Cover 1. Valve Body Cover 2. Valve Body Cover Gasket 3. Solenoid Valve Connector Component Location (2)_Solenoid Valve 1.
