Hyundai Santa Fe (TM): Rear View Monitor (RVM) / System operation

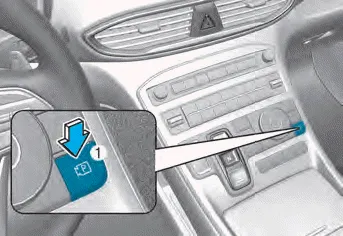

Operating button
Parking/View button
Press the Parking/View button (1) to turn on Rear View Monitor.
Press the button again to turn off the system.

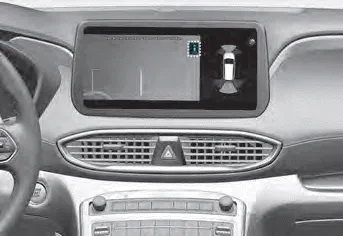

Rear view
Operating conditions
- Shift the gear to R (Reverse), the image will appear on the screen.
- Press the Parking/View button (1) while the gear is in P (Park), the image will appear on the screen. However, parking guidance is not displayed.
Off conditions
- The rear view cannot be turned off when the gear is in R (Reverse).
- Press the Parking/View button (1) again while the gear is in P (Park) with the rear view on the screen, the rear view will turn off.
- Shift the gear from R (Reverse) to P (Park), the rear view will turn off.
Maintaining rear view
The rear view will maintain showing on the screen to help you when parking. However, parking guidance is not displayed.
Operating conditions
Shift the gear from R (Reverse) to N (Neutral) or D (Drive), the rear view will appear on the screen.
Off conditions
- When vehicle speed is above 6 mph (10 km/h), the rear view will turn off.
- Shift the gear to P (Park), the rear view will turn off.
Rear top view
When you touch the
icon, the top
view is displayed on the screen and shows the distance from the vehicle in the back
of your vehicle while parking.
Camera settings You can change Rear View Monitor ‘Display Contents’ or ‘Display Settings’ by touching the setup icon ( ) on the screen while Rear View Monitor is operating, or selecting ‘Driver Assistance → Parking Safety → Camera Settings’ from the Settings menu while the engine is on.
System malfunction When Rear View Monitor is not working properly, or the screen flickers, or the camera image does not display normally, we recommend that the system be inspected by an authorized HYUNDAI dealer.
