Hyundai Santa Fe (TM): Button Engine Start System / Start/Stop Button. Components and components location

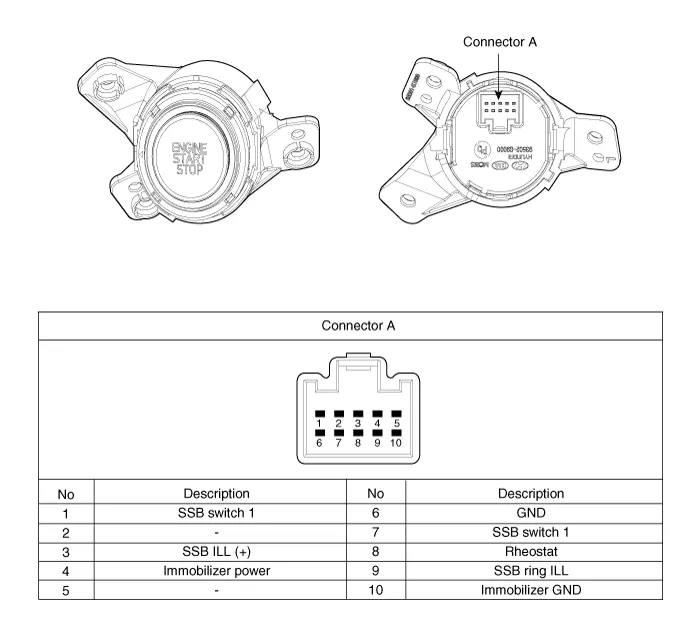

| Component |
Component Location 1. Start Stop Button(SSB) 2. FOB key 3. Tailgate open switch 4. Interior antenna 1 5. Interior antenna 2 6.
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the driver crash pad lower panel.
