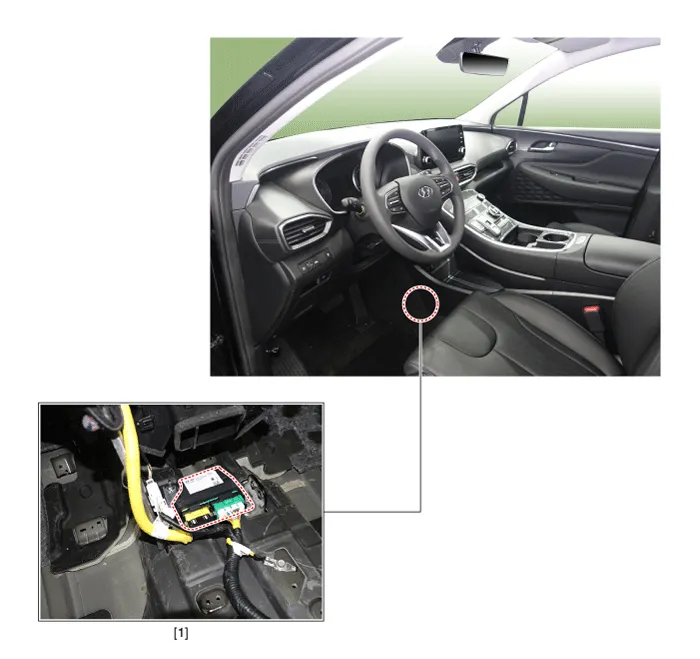

Hyundai Santa Fe (TM): SRSCM / SRS Control Module (SRSCM). Components and components location

Description The primary purpose of the SRSCM (Supplemental Restraints System Control Module) is to discriminate between an event that warrants restraint system deployment and an event that does not.

Supplemental Restraint System Control Module (SRSCM) No Connector A Connector B 1 Driver airbag 2st stage (High) - 2 Driver airbag 2st stage (Low) - 3 Passenger airbag 2st stage (Low) - 4 Passenger airbag 2st stage (High) Driver seat belt anchor pretensioner (Low) 5 - Driver seat belt anchor pretensioner (High) 6 - Passenger seat belt anchor pretensioner (High) 7 Passenger airbag active air vent (Low) Passenger seat belt anchor pretensioner (Low) 8 Passenger airbag active air vent (High) 9 - 10 B+ 11 Crash output 12 Passenger airbag 1st stage (Low) 13 Passenger airbag 1st stage (High) - 14 - - 15 - Passenger seat belt buckle sensor 16 Telltale lamp - 17 Passenger curtain airbag (Low) 18 - Passenger curtain airbag (High) 19 Driver airbag 1st stage - (High) Driver curtain airbag (High) 20 Driver airbag 1st stage (Low) Driver curtain airbag (Low) 21 - Passenger side airbag (Low) 22 - Passenger side airbag (High) 23 - Driver side airbag (High) 24 - Driver side airbag (Low) 25 - - 26 C-CAN (Low) - 27 C-CAN (High) Driver seat belt pretensioner (Low) 28 IGN 1 Driver seat belt pretensioner (High) 29 Front impact sensor LH - (High) - 30 Front impact sensor LH - (Low) - 31 Front impact sensor RH - (Low) - 32 Front impact sensor RH - (High) Passenger seat belt pretensioner (High) 33 Passenger seat belt pretensioner (Low) 34 - 35 P-CAN (Low) - 36 P-CAN (High)) - 37 - 38 - 39 - 40 Ground 41 Driver side rear impact sensor (Low) 42 Driver side rear impact sensor (High) 43 Driver pressure side impact sensor (High) 44 Driver pressure side impact sensor (Low) 45 Passenger pressure side impact sensor (Low) 46 Passenger pressure side impact sensor (High) 47 Driver side impact sensor (High) 48 Driver side impact sensor (Low) 49 Passenger side impact sensor (Low) 50 Passenger side impact sensor (High) 51 Passenger side rear impact sensor (High) 52 Passenger side rear impact sensor (Low)
