Hyundai Santa Fe (TM): SRSCM / Side Impact Sensor (SIS). Components and components location

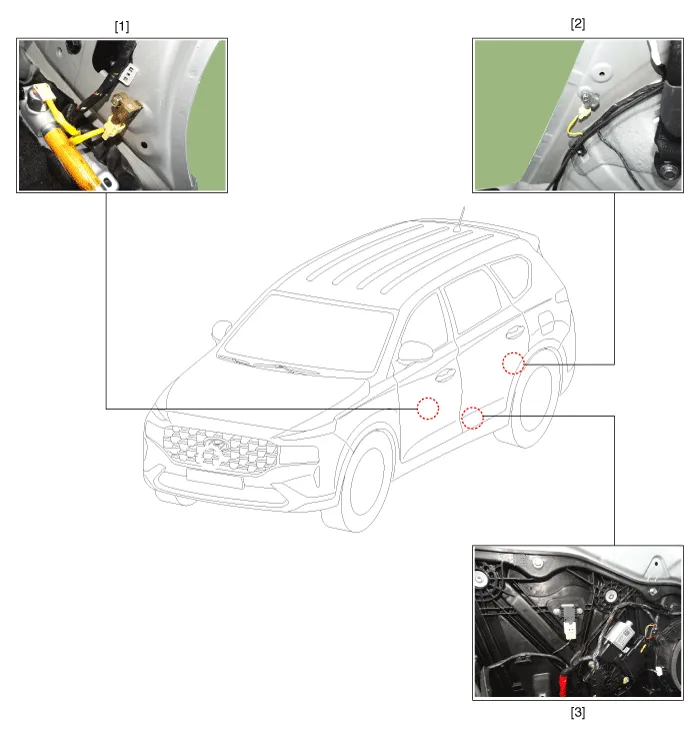

| Components |
| 1. Gravity Side
Impact Sensor [G-SIS(B-Pillar)] 2. Gravity Side Impact Sensor [G-SIS(C-Pillar)] |
3. Front Pressure
Side Impact Sensor (P-SIS) |
Description The Side Impact Sensor (SIS) system consists of two kinds of side impact sensor which are installed at each center of the front door module (left and right) and two rear sensors which are installed in the rear pillar (left and right).
Removal • Removal of the airbag must be performed according to the precautions/procedures described previously.
