| Circuit Diagram |

|
Pin |
Description |
Pin |
Description |
|
1 |
C-CAN (High) |
21 |
ILL (+) |
|
2 |
C-CAN (Low) |
22 |
- |
|
3 |
- |
23 |
ILL (-) |
|
4 |
- |
24 |
Right seat heater signal |
|
5 |
- |
25 |
Right seat heater IND MIN |
|
6 |
IGN |
26 |
Right seat heater IND MID |
|
7 |
- |
27 |
Right seat heater IND MAX |
|
8 |
Auto hold signal |
28 |
Right ventilation seat signal |
|
9 |
PDW signal |
29 |
Right ventilation seat IND MIN |
|
10 |
Steering wheel heater signal |
30 |
Right ventilation seat IND MID |
|
11 |
SVM signal |
31 |
Right ventilation seat IND MAX |
|
12 |
ISG signal |
32 |
Left seat heater signal |
|
13 |
DBC signal |
33 |
Left seat heater IND MIN |
|
14 |
- |
34 |
Left seat heater IND MID |
|
15 |
Steering wheel heater IND |
35 |
Left seat heater IND MAX |
|
16 |
ISG IND |
36 |
Left ventilation seat signal |
|
17 |
PDW IND |
37 |
Left ventilation seat IND MIN |
|
18 |
DETENT signal |
38 |
Left ventilation seat IND MID |
|
19 |
- |
39 |
Left ventilation seat IND MAX |
|
20 |
Ground |
40 |
- |

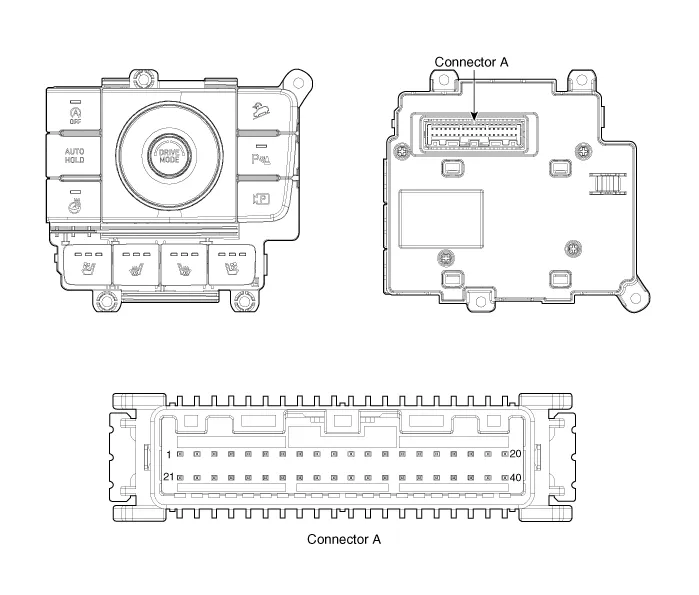

Components 1. Front seat heater switch 2. Rear seat heater switch
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the console upper cover (A).
Removal • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
