Hyundai Santa Fe (TM): Seat Electrical / Seat Heater (Air Ventilation). Schematic diagrams

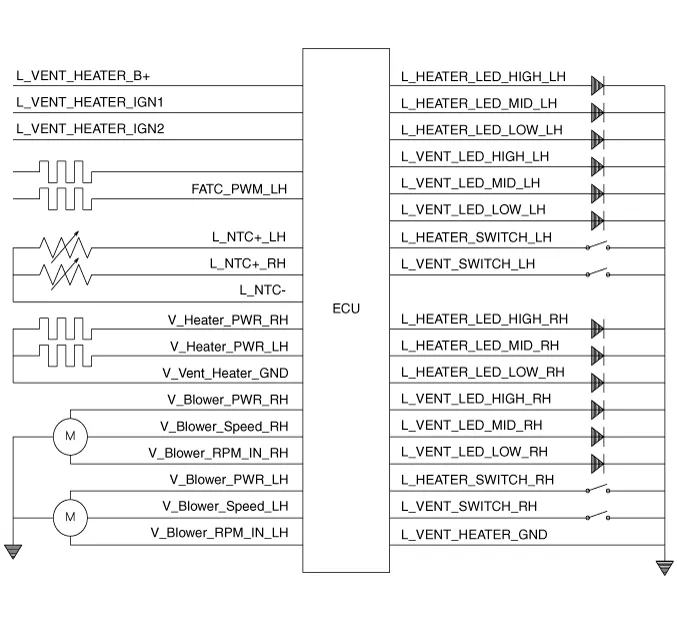

| Circuit Diagram |
Components 1. Seat cushion heater 2. Seat heater unit (Passenger only) 3. Seat back heater No.
Inspection Front Seat 1. Check for continuity and measure the resistance between terminals. No.
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: PTC Heater (Diesel only). Repair procedures
Inspection Operating Logic Test (Manual only) Inspect the PTC operation with the confirmation logic below : 1. Entering (1) Set the mode to FLOOR. (2) Set the temperature to MAX HOT.
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: ADAS Parking ECU (ADAS_PRK). Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the carash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3. Remove the crash pad center panel.
