Hyundai Santa Fe (TM): SRSCM / Seat Belt Buckle Switch (BS). Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Restraint / SRSCM / Seat Belt Buckle Switch (BS). Repair procedures

Removal
1.
Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
2.
Remove the front seat assembly.
(Refer to Body - "Front Seat Assembly")
3.

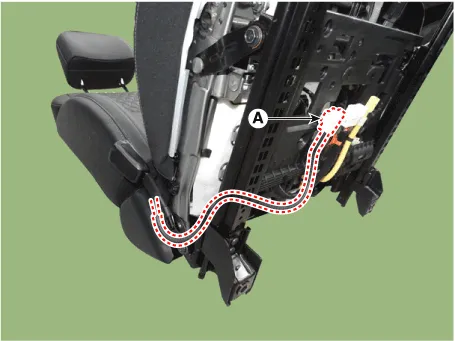

Remove the seat belt buckle switch wiring (A).
4.
Remove the seat belt buckle switch by loosening the monuting bolt.
Installation

•
Be sure to install the harness wires so they will not pinch or interfere with other parts.
1.
Install the seat belt buckle switch.
2.
Install the front seat assembly.
(Refer to Body - "Front Seat Assembly")
3.
Reconnect the battery negative cable.
4.
After installing the seat belt buckle switch, confirm proper system operation:
Turn the ignition switch ON; the SRS indicator should turn on for about six seconds and then go off.

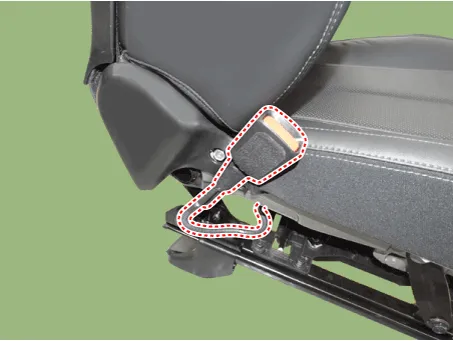

    Components 1. Seat belt buckle switch (BS)
