Hyundai Santa Fe (TM): SRSCM / Seat Belt Buckle Switch (BS). Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Restraint / SRSCM / Seat Belt Buckle Switch (BS). Components and components location
| Components |

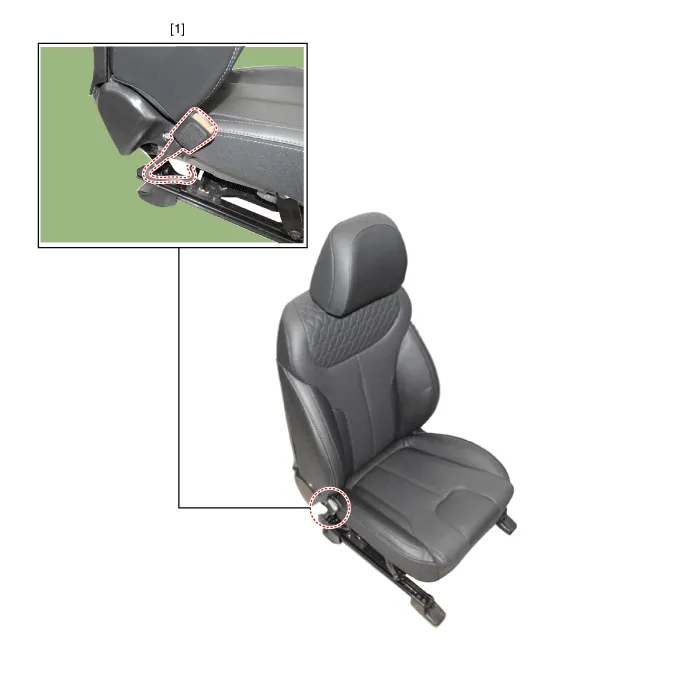

| 1. Seat belt
buckle switch (BS) |
Description The SRSCM monitors the status of the driver and front passenger seat belt buckle. The SRSCM provides one pin each for the driver and front passenger seat belt buckle status input.
Removal 1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work. 2.
