Hyundai Santa Fe (TM): SRSCM / Schematic diagrams

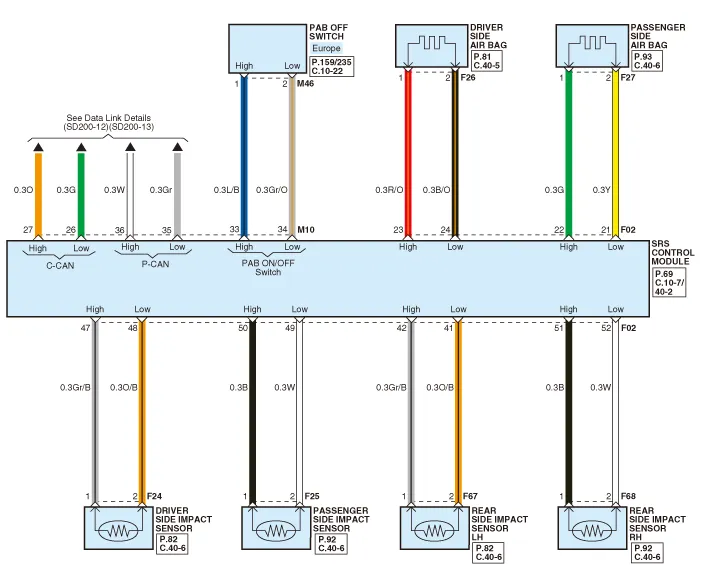

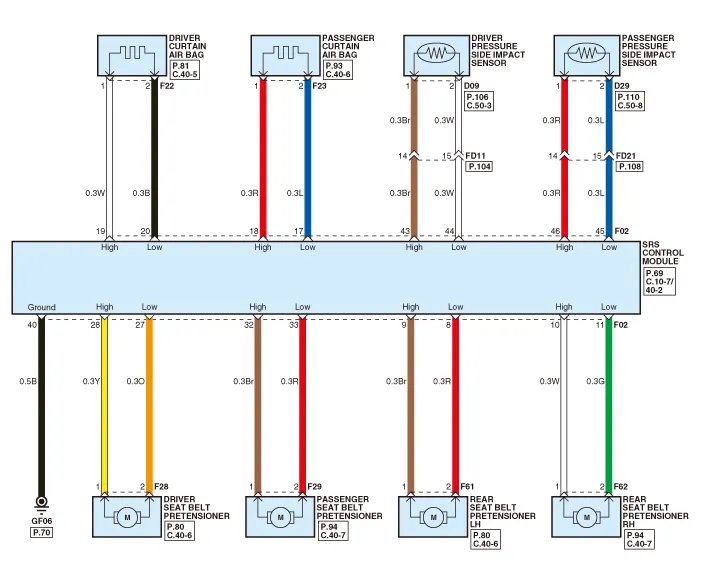

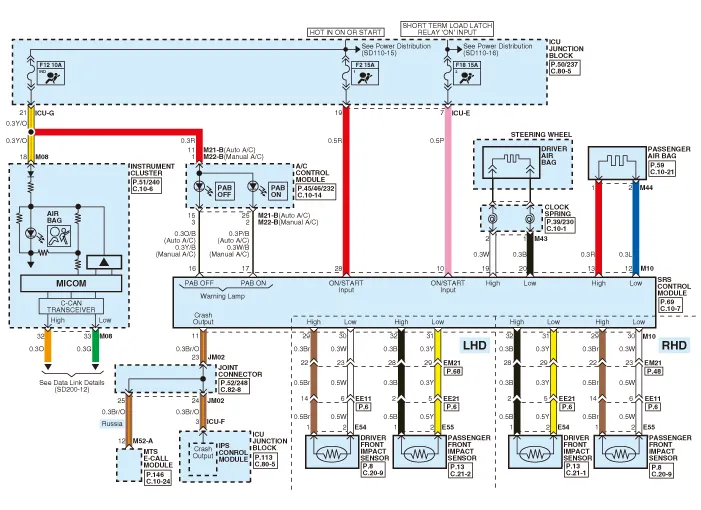

| Circuit Diagram |
Components 1. Supplemental Restraint System Control Module (SRSCM) 2. Gravity side impact sensor (G-SIS) _ C pillar 3.
Description The primary purpose of the SRSCM (Supplemental Restraints System Control Module) is to discriminate between an event that warrants restraint system deployment and an event that does not.
