Hyundai Santa Fe (TM): Rear View Monitor (RVM) / Schematic diagrams

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Advanced Driver Assistance System (ADAS) / Rear View Monitor (RVM) / Schematic diagrams

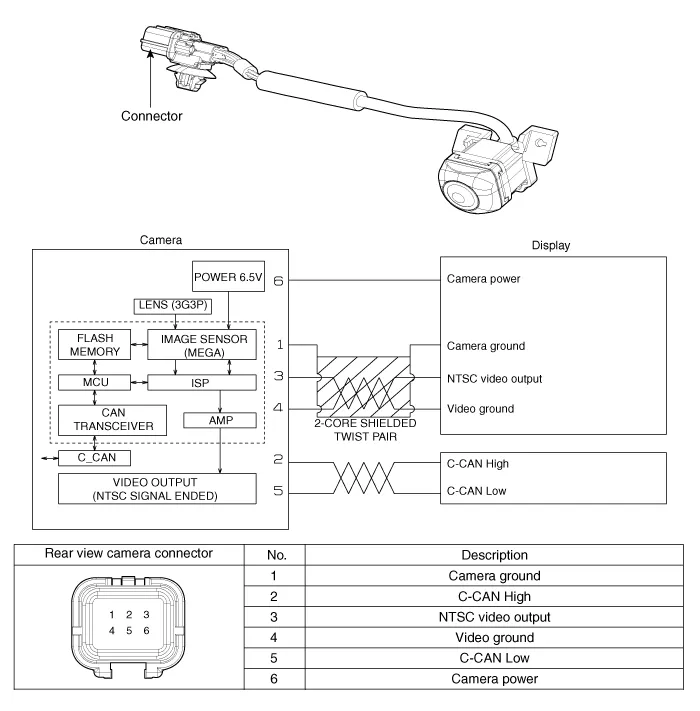

Circuit Diagram

    Component Location 1. Rear view camera 2. H/UNIT

    Removal 1. Remove the tailgate trim. (Refer to Body - "Tailgate Trim") 2. Remove the tailgate ganish (A).
