Hyundai Santa Fe (TM): Lighting System / Room Lamp. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Lighting System / Room Lamp. Repair procedures

Inspection
1.

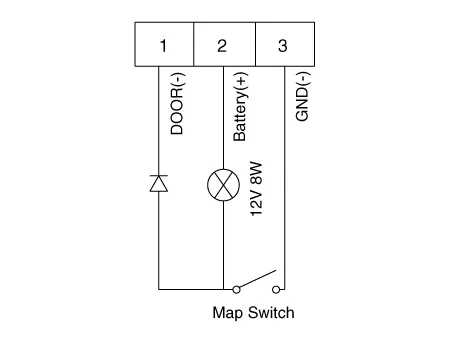

Remove the room lamp assembly then check for continuity between terminals.
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver.
3.

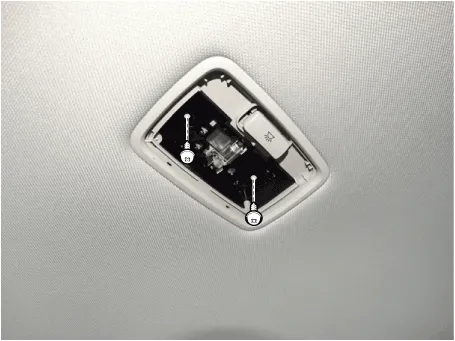

Separate the room lamp (A) from the roof trim after loosening the screws (2EA).
4.

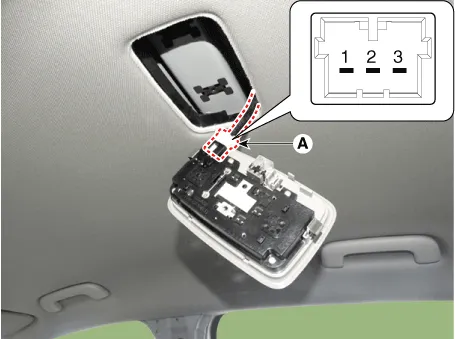

Remove the room lamp (B) after disconnecting the connector (A).
5.

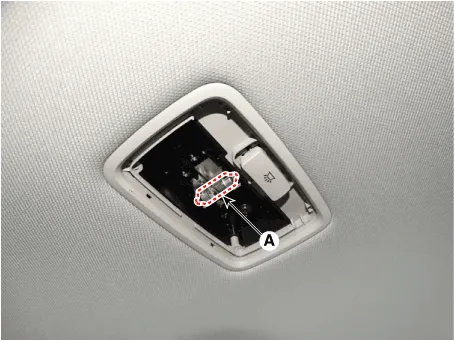

If it is necessary replace the room lamp bulb (A).
Installation
1.
Install the room lamp assembly after connecting the lamp connector.
2.
Install the lamp lens after assembling the bulb.

    Removal Outside Rear View Mirror    • Put on gloves to prevent hand injuries.

    Inspection 1. Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
