Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear roof trim.
(Refer to Body - "Roof Trim Assembly")
3.

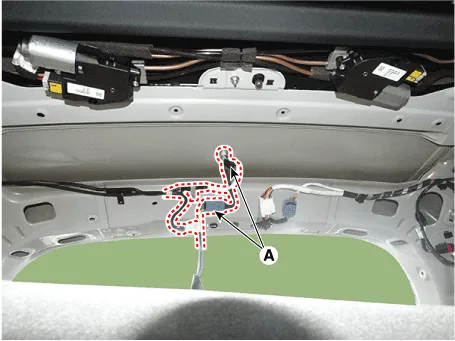

Disconnect the roof antenna connectors (A) from the roof antenna.
4.

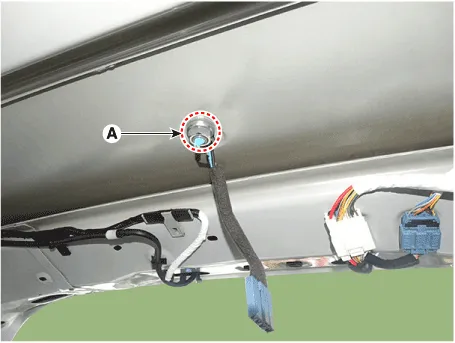

Remove the roof antenna (A) after removing a nut.
Installation
1.
Connect the roof antenna connectors.
Tightening torque :
7.8 - 14.7 N.m (0.8 - 1.5 kgf.m, 5.8 - 10.8 lb-ft)
2.
Install the rear roof trim.

–
Make sure that the cables and connectors are plugged in properly.
–
Check the audio system.
