Hyundai Santa Fe (TM): AVN System / Roof Antenna. Components and components location

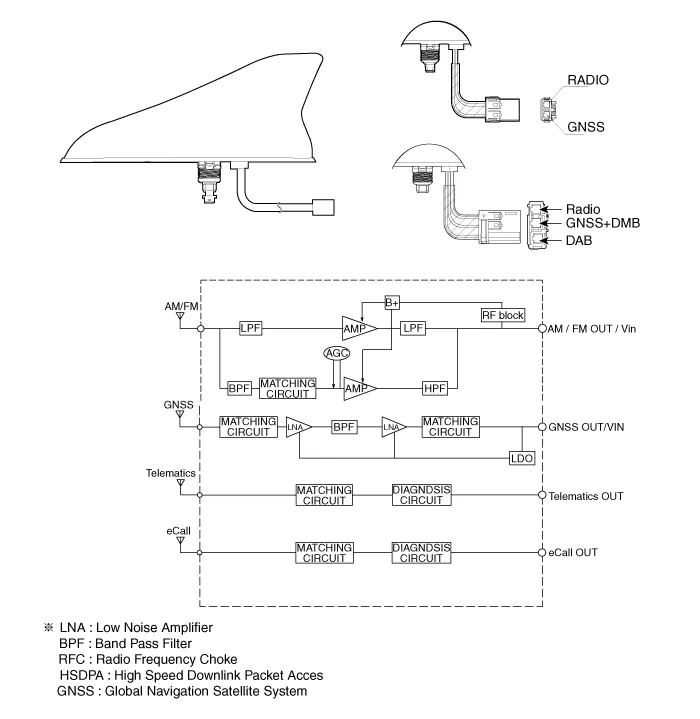

| Components |
Removal External Amplifier 1. Disconnect the negative (-) battery terminal. 2. Remove the passenger seat assembly.
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear roof trim.
