Adjustment
Glass Adjustment

•
Check the glass run channel for damage or deterioration, and replace them if necessary.
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.

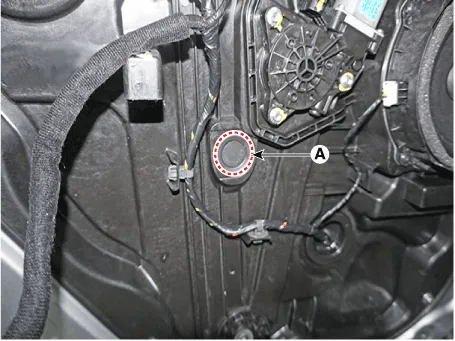

Remove the plug hole (A).
3.

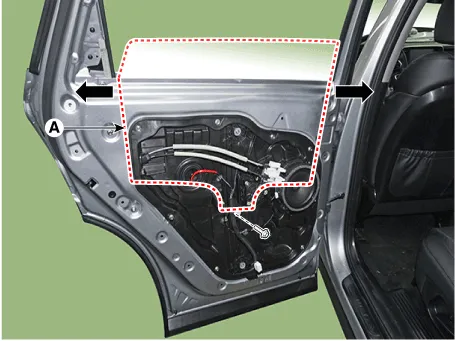

After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.
4.
Check the glass for normal operation.
Door Striker Adjustment

•
Make sure the door latches securely without slamming it. If necessary adjust the striker (A). The striker nuts are fixed. The striker can be fine adjusted up or down, and in or out.
1.

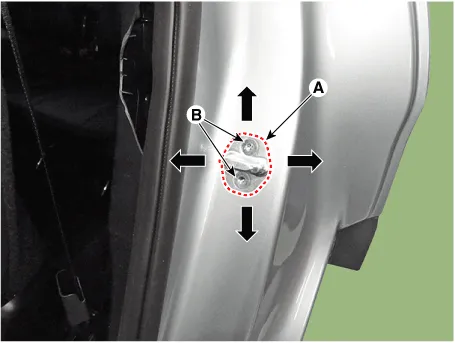

After loosening the mounting screw, adjust the striker (A) by moving it forward and backward or from side to side and then tighten the bolts (B).
Tightening torque
21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb-ft)

2.
Check that door opening and closing works properly.
Door Position Adjustment

•
After installing the rear door, check that the body fits flush with/parallel to all the edges of front door. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.
1.
Check that the door and body edges are parallel.
2.
Place the vehicle on a firm, level surface when adjusting the doors.
3.
Adjust the hinges (A) :
•
Loosen the door mounting bolts slightly, and move the door in or out until it aligns flush with the body.
•
Loosen the hinge mounting bolts slightly, and move the door backward or forward, up or down as necessary to make the gaps equal.
•
Place a shop towel on the jack to prevent damage to the door when adjusting the door.
Tightening torque
(B) : 21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)
(C) : 23.5 - 31.4 N.m (2.4 - 3.2 kgf.m, 17.4 - 23.1 lb-ft)

4.
Grease the pivot portions of the hinges indicated by the arrows.
5.
Check for water leaks.

    Components 1. Rear door window glass 2. Rear door window glass run assembly 3. Rear door outside handle 4. Rear door outside handle pad 5.

    Component Location 1. Rear Door Trim
