Hyundai Santa Fe (TM): Steering wheel / Repair procedures
| Removal |
| 1. |
Turn the steering wheel so that the front wheels can face straight ahead.
|
| 2. |
Turn the ignition switch OFF and disconnect the battery negative (-)
cable.
|
| 3. |
Remove the drive airbag module.
(Refer to Restraint - "Drive Air Bag Module")
|
| 4. |

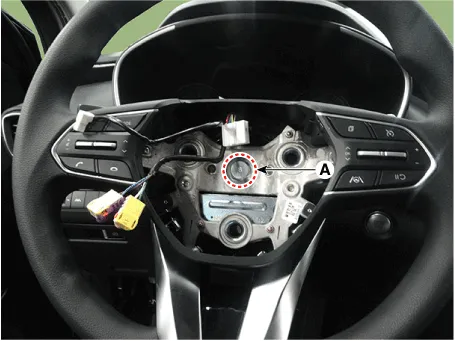

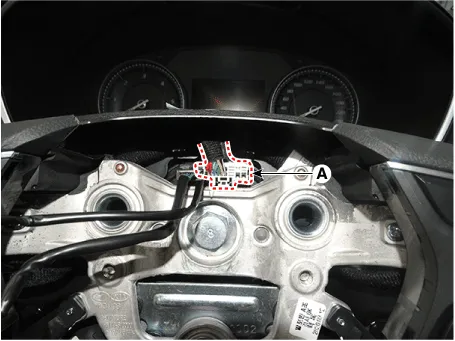

Disconnect the steering wheel connector (A).
|
| 5. |

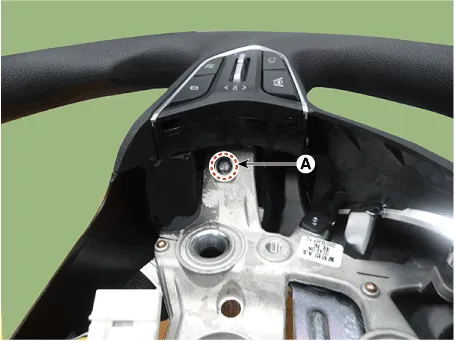

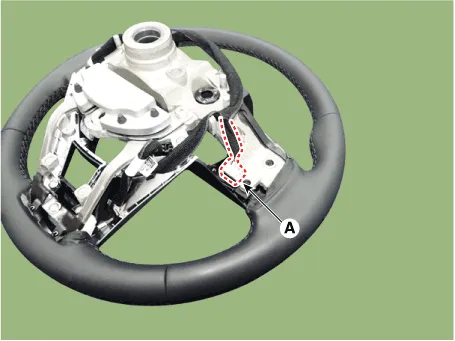

Remove the steering wheel after loosening the bolt (A).
|
| Disassembly |
| 1. |

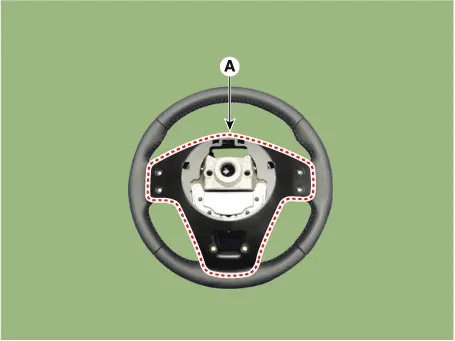

Loosen the screw and then remove the lower cover (A).
|
| 2. |

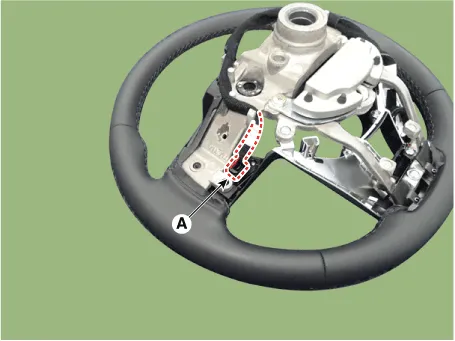

Disconnect the remote control switch connector (A).
|
| 3. |

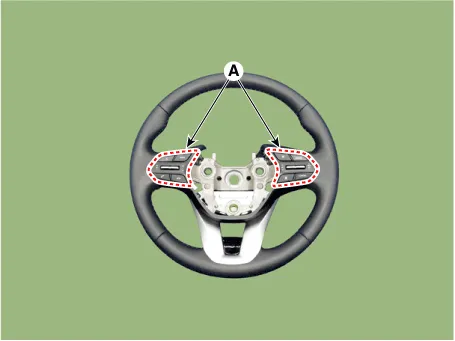

Loosen the screw and then remove the remote control switch (A).
|
| 4. |

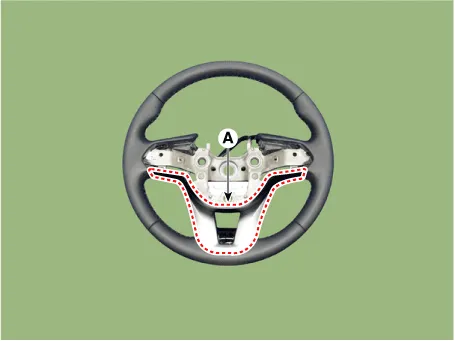

Remove the steering wheel bezel (A).
|
| 5. |

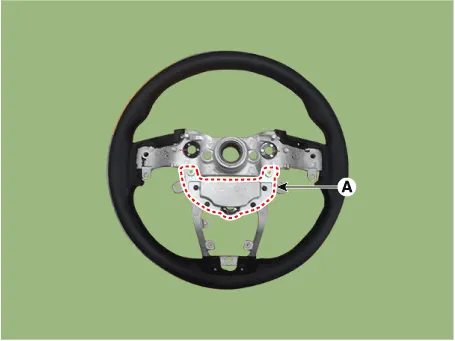

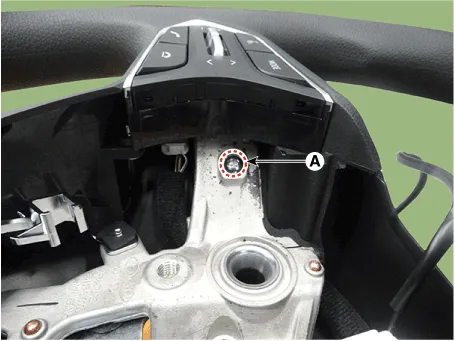

Remove the steering wheel damper (A) after loosening the mounting bolts.
|
| 1. |
Loosen the paddle shift switch mounting screw (A).
|
| 2. |

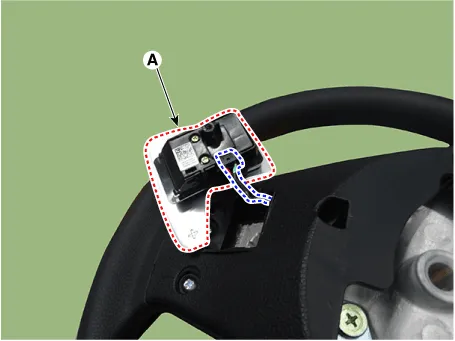

Remove the paddle shift switch (A) after disconnecting the connector.
|
| 3. |
Remove the lower cover (A) after loosening the screw.
|
| 4. |
Disconnect the remote control switch connector (A).
|
| 5. |

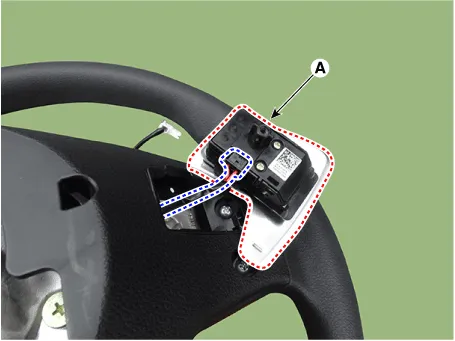

Remove the remote control switch (A) after loosening the screw.
|
| 6. |
Remove the steering wheel bezel (A).
|
| 7. |
Remove the steering wheel damper (A) after loosening the mounting bolts.
|
| Reassembly |
| 1. |
To reassembly, reverse the disassembly procedure.
|
| Installation |
| 1. |
To install, reverse the removal procedures.
|
Components 1. Lower cover 2. Switch bezel 3. Remote control switch 4. Paddle shift 5. Damper 6. Steering Wheel 7.
Description Heated pads to grip the steering grip makes the fever. Heated pad
