| Removal |
| 1. |
Prior to replacing the 4WD ECU, check the 4WD ECU's clutch learing with
the diagnostic tool.
(Refer to 4WD Control System - "Repair Procedures")
|
| 2. |
Turn OFF ignition switch and the disconnect the negative (-) battery
cable.
|
| 3. |
Remove the luggage side trim. [Left side]
(Refer to Body - "Luggage Side Trim")
|
| 4. |

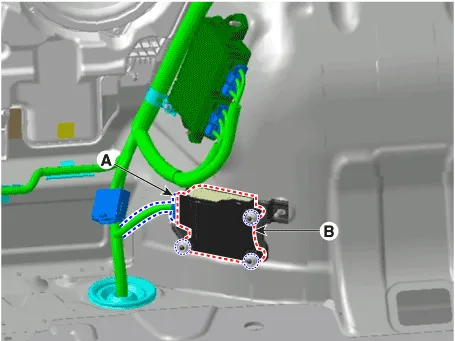

Disconnect the 4WD ECU connector (A).
|
| 5. |
Loosen the nuts and then removing the 4WD ECU (B).
|
| Installation |
| 1. |
To install, reverse the removal procedures.
|
| 2. |
Prior to installing a new ECU, upload the original ECU’s clutch learing
to the replacement ECU using the diagnostic tool.
(Refer to 4WD Control System - "Repair Procedures")
|
