| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the glove box.
(Refer to Body - "Glove Box")
|
| 3. |

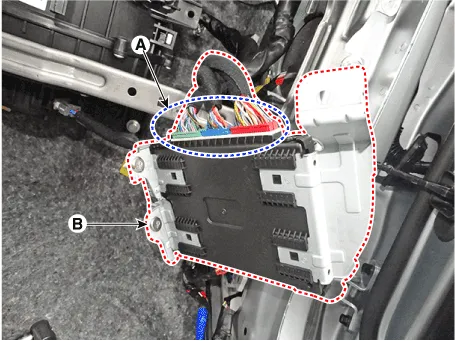

Disconnect the body control module connectors (A) and then remove the
integrated body control unit (B).
|
| Installation |
| 1. |
Install the integrated body control module.
|
| 2. |
Connect the integrated body control module.
|
| 3. |
Install the glove box.
|
| IBU Diagnosis With Diagnostic Tool |
| 1. |
In the body electrical system, failure can be quickly diagnosed by using
the vehicle diagnostic system.
|
| 2. |

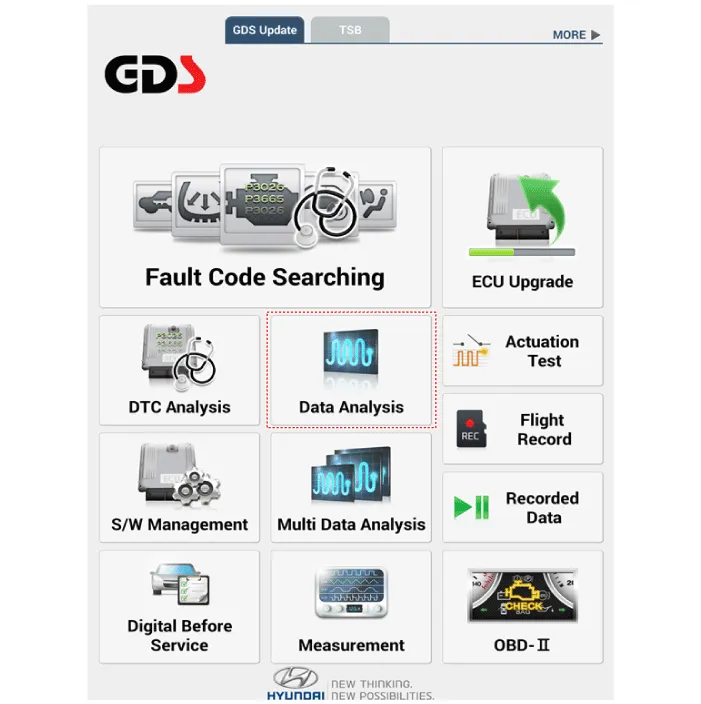

If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and
"Vehicle".
|
| 3. |

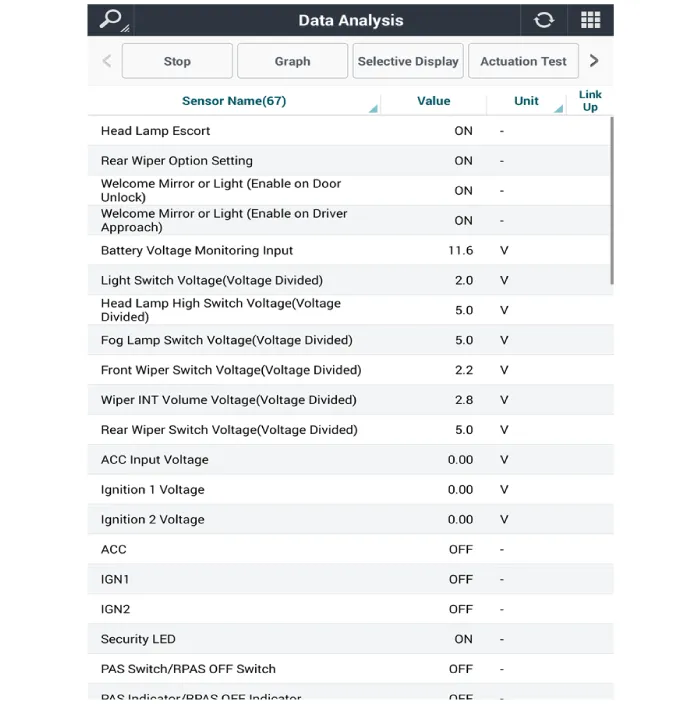

If check current status, select the "Data Analysis" and "Car model".
|
| 4. |

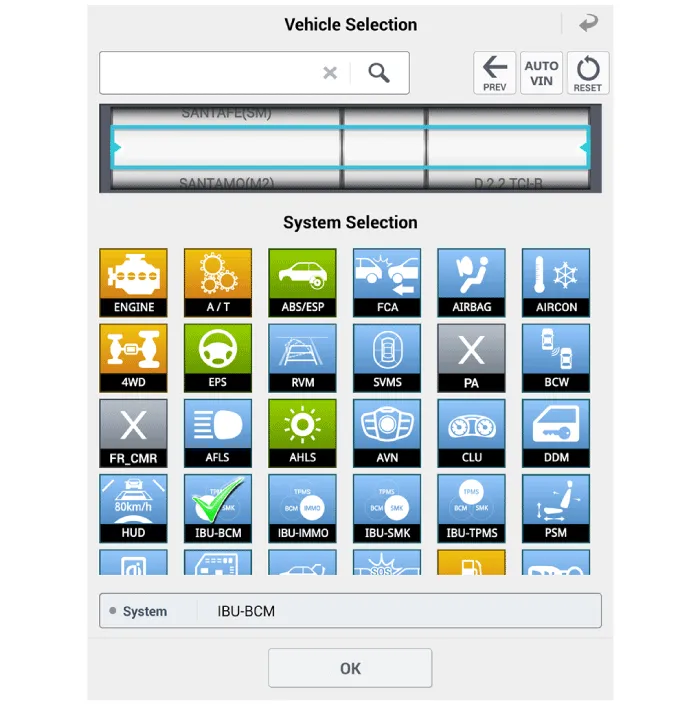

Select the 'IBU_BCM' to search the current state of the input/output
data.
|
