Hyundai Santa Fe (TM): Keyless Entry And Burglar Alarm / Repair procedures
| Inspection |
| 1. |
Remove the front door trim.
(Refer to Body - "Front Door Trim")
|
| 2. |
Remove the front door module.
(Refer to Body - "Front Door Module")
|
| 3. |

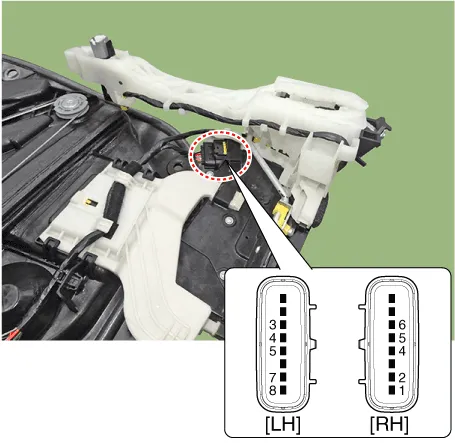

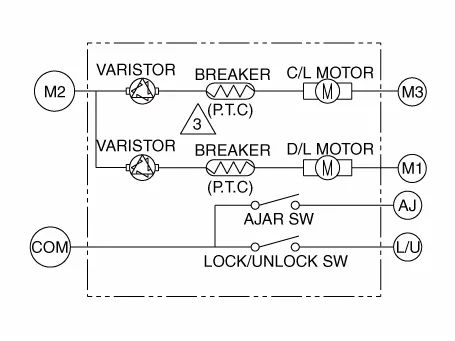

Disconnect the connectors from the actuator.
|
| 4. |

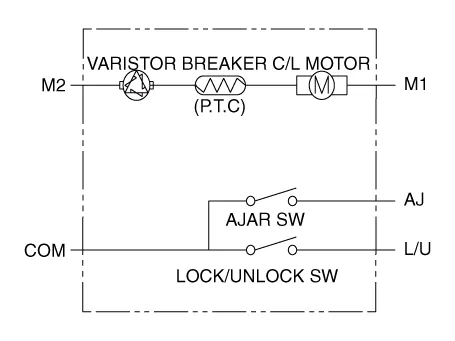

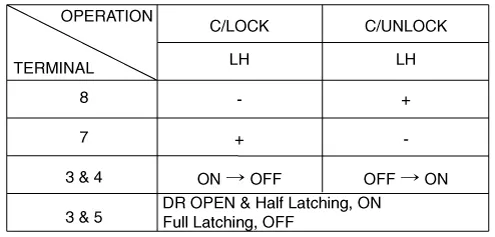

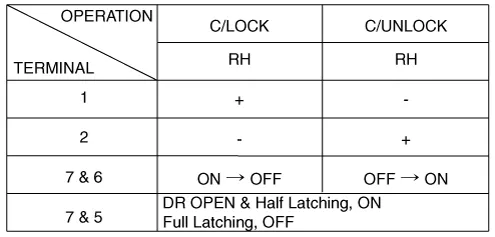

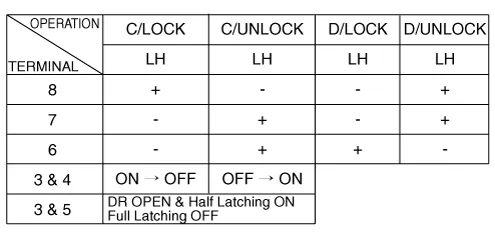

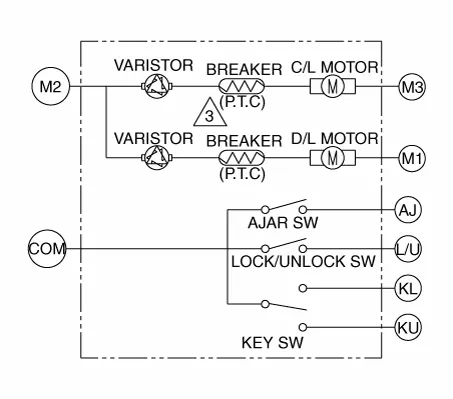

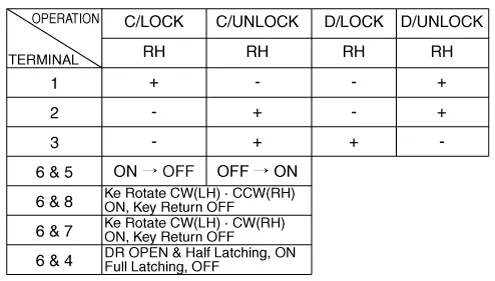

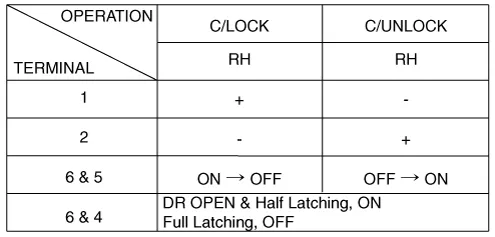

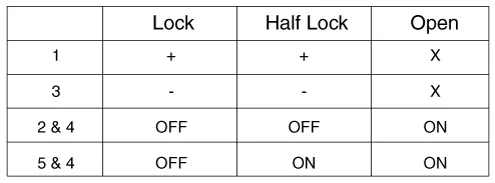

Check actuator operation by connecting power and ground according to
the table.
[Dead Lock]
[Central Lock]
[Central Lock]
[Dead Lock]
Driver
Passenger
|
| 1. |
Remove the rear door trim.
(Refer to Body - "Rear Door Trim")
|
| 2. |
Remove the rear door module.
(Refer to Body - "Rear Door Module")
|
| 3. |

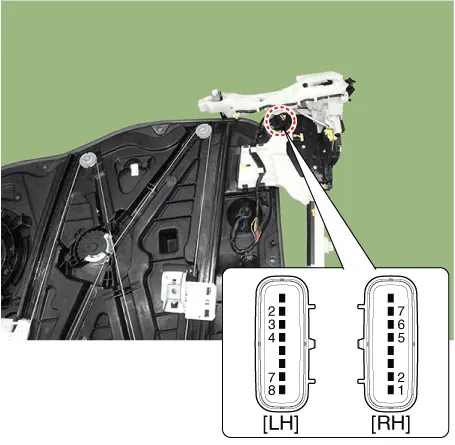

Disconnect the connectors from the actuator.
|
| 4. |

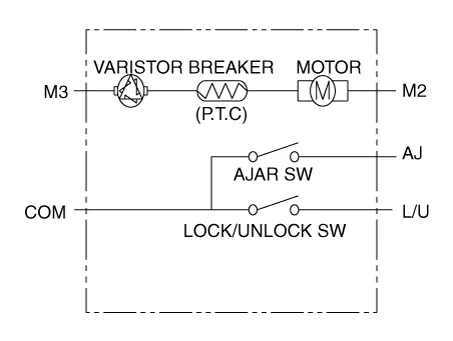

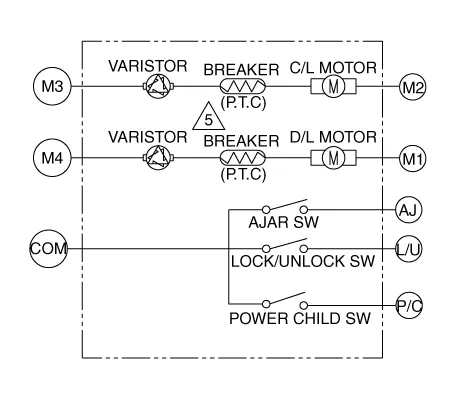

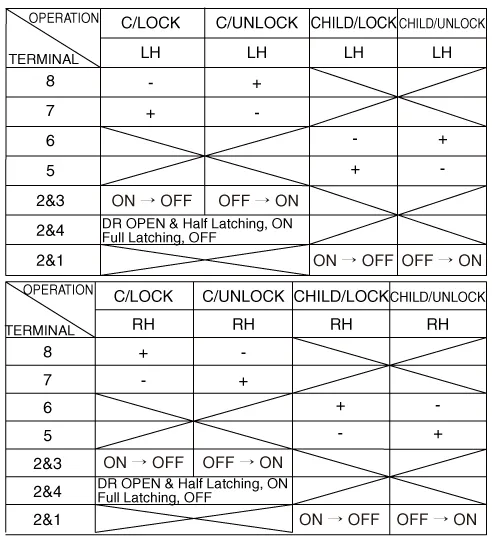

Check actuator operation by connecting power and ground according to
the table.
[Central Lock]
[Dead Lock]
[Child Lock]
|
| 1. |
Remove the tailgate trim.
(Refer to Body - "Tailgate Trim")
|
| 2. |

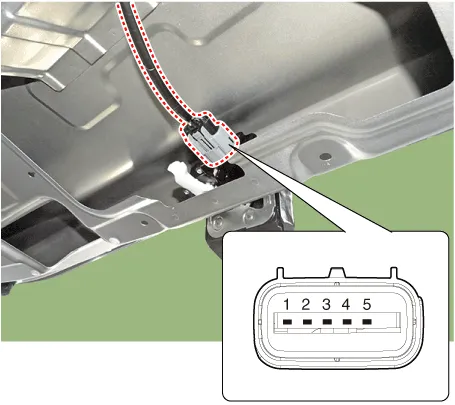

Disconnect the 4P connector from the actuator.
|
| 3. |

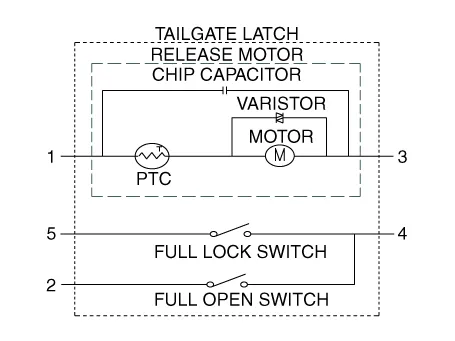

Check actuator operation by connecting power and ground according to
the table.
|
| 1. |

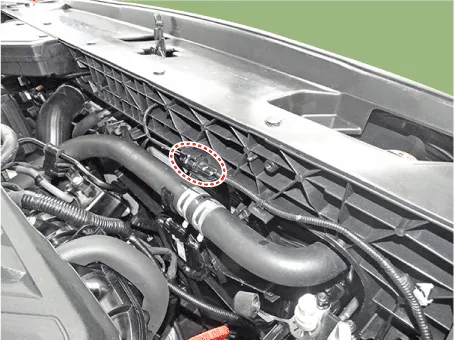

Disconnect the connector and bolts from the hood switch.
|
| 2. |

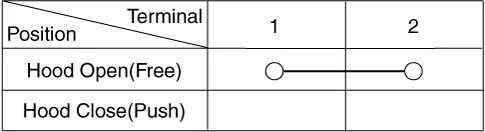

Check for continuity between the terminals and ground according to the
table.
|
Specification Item Specification Power source 3V Operating temperature -20°C to +60°C (-4°F to- +140°F) RF Modulation FSK LF Modulation ASK RF frequency 433.
