Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel")
3.
Remove the steering column upper and lower shrouds.
(Refer to Body - "Steering Column Shroud Panel")
4.

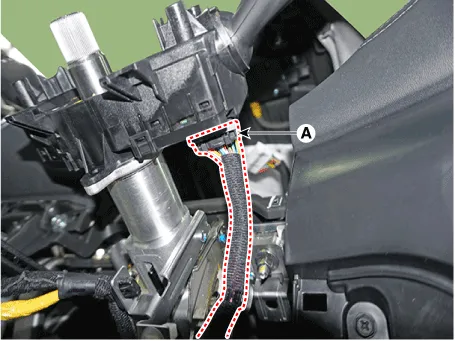

Disconnect the multifunction switch connector (A).
5.

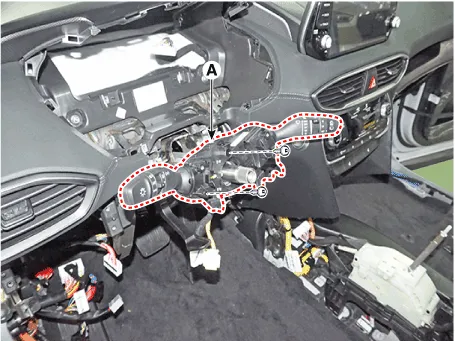

Loosen the screws (2EA) and then remove the multifunction switch assembly (A).
Installation
1.
Install the multifunction switch.
2.
Install the clock spring and steering wheel.
3.
Install the steering column upper and lower shrouds.
4.
Install the steering wheel.
Inspection
Multifunction Switch Inspection
1.

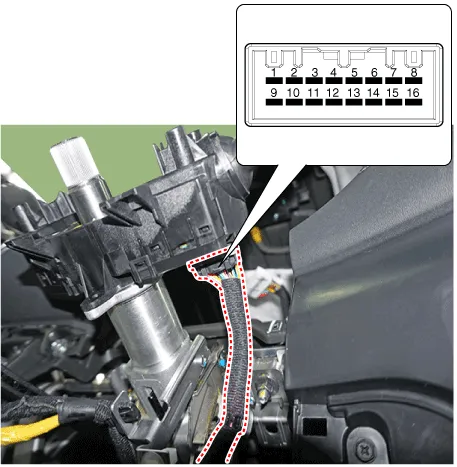

Check for continuity between the terminals in each switch position as shown below.

Switch
Switch position
Switch terminal
Resistance (Ω, ±3.5%)
Front wiper switch
 MIST
 1-9
 330
OFF
 ∞
INT (AUTO)
 800
LOW
 1800
HIGH
 5700
Front wiper intermittent volume
 Volume 1
 7-9
 330
Volume 2
 690
Volume 3
 1310
Volume 4
 2610
Volume 5
 7310
Rear wiper switch
OFF
 4-16
 ∞
LOW
 910
HIGH
 2000
Fog lamp switch
 OFF
 9-10
 ∞
Front foglamp
 910
Rear foglamp
 2910
Turn signal switch
 OFF
 9-12
 ∞
Left
 910
Right
 2910
Dimmer & Passing switch
 OFF
 9-13
 ∞
Passing
 910
Dimmer
 2910
Light switgh
 OFF
 9-14
 680
AUTO / DRL
 ∞
Tail lamp
 1680
Low beam
 5580

Inspection (With Diagnostic Tool)
1.
In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (diagnostic tool).
The diagnostic system (diagnostic tool) provides the following information.
(1)
Fault Code Searching : Checking failure and code number (DTC)
(2)
Data Analysis : Checking the system input/output data state
(3)
Actuation test : Checking the system operation condition
(4)
S/W Management : Controlling other features including system option setting and zero point adjustment
2.
If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".
3.
If check current status, select the "Data Analysis" and "Car model".
4.

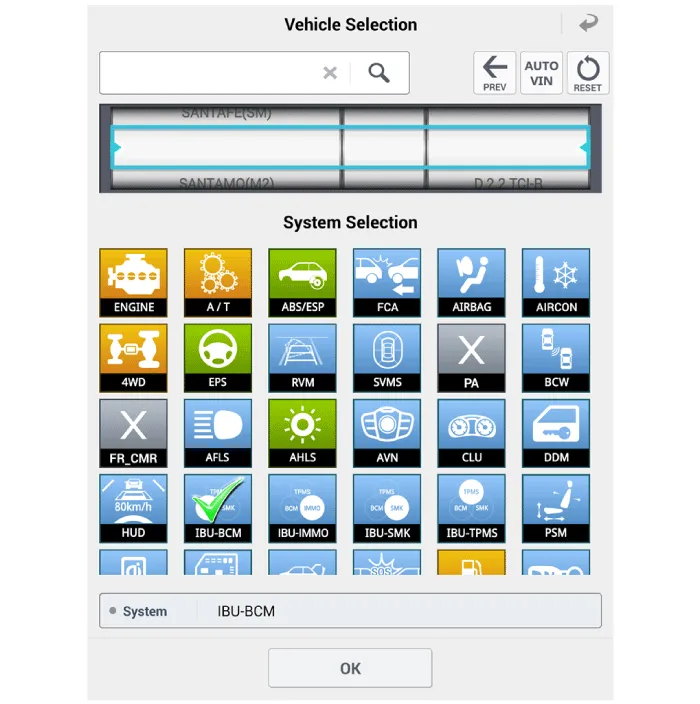

Select the 'IBU_BCM' to search the current state of the input/output data.

    Specifications Items Specifications Rated voltage DC 12V Operating temperature range -22 to +176°F (-30°C to +80°C) Rated load Dimmer & passing switch High : 0.
