Hyundai Santa Fe (TM): Floor Carpet / Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Floor Carpet / Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
4.
Remove the cowl side trim.
(Refer to Interior Trim - "Cowl Side Trim")
5.
Remove the center pillar lower trim.
(Refer to Interior Trim - "Center Pillar Trim")
6.
Remove the accelerator pedal module.
(Refer to Fuel system-"accelerator pedal")
7.

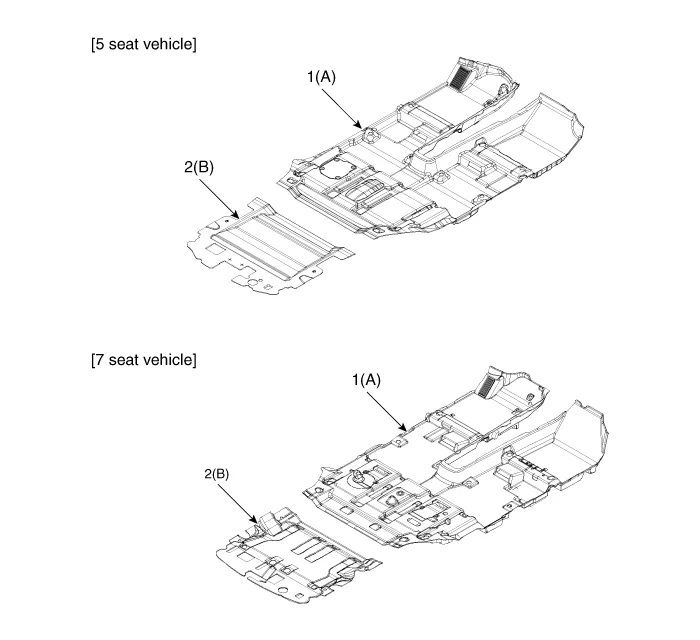

Remove the front floor carpet assembly (A) , and rear floor carpet assembly (B).
8.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

1. Floor Floor Carpet Assembly
 2. Rear Floor Carpet Assembly
