Hyundai Santa Fe (TM): Cowl Top Cover / Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Cowl Top Cover / Repair procedures

Replacement
1.

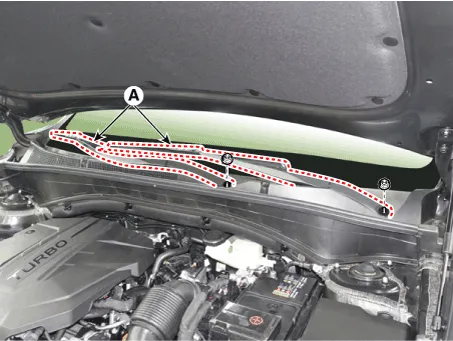

Remove the cap and the nuts, and then remove the wiper arm (A).
Tightening torque :
22.6 - 26.5 N.m (2.3 - 2.7 kgf.m, 16.6 - 19.5 lb-ft)

2.

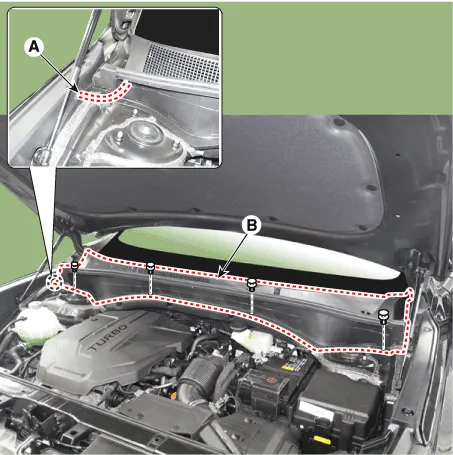

Disconnect the washer nozzle (A).
3.
Detach the clips, then remove the cowl top cover (B).
4.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Cowl Top Cover
