Hyundai Santa Fe (TM): Panorama Sunroof / Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Panorama Sunroof / Repair procedures

Alignment
Glass step alignment
1.

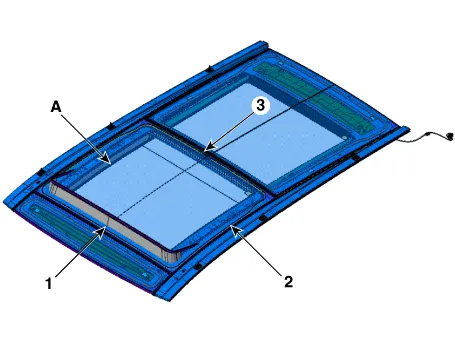

Perform considerable step alignment after replacing movable glass (A).

â‘

â‘¡

â‘¢


2.

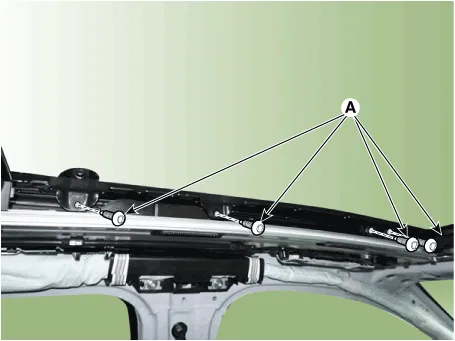

Perfrom height adjustment releasing screw (A) a bit.

•
Be careful not to damage screws.

3.
Tighten the screw (A) completely after adjusting the height
Initializing motor
1.
Turn the ignition switch to the ON position or start the engine.
We recommend resetting the sunroof while the engine is running.
2.
Close the blind and glass completely if opened.
3.
Release the sunroof control lever.
4.
Push the sunroof control lever forward in the direction of close (about 10 seconds) until the blind slightly moves. Then, release the lever.
5.
Push the sunroof control lever forward in the direction of close, until the sunroof operates as follows again : Blind Open → Glass Slide Open → Glass Slide Close → Blind Close Then, release the lever.
When this is complete, the sunroof system has been reset. (Do not release the lever until the operation is completed. If you release the lever during operation, try again from step 2.)
In case of motor initializing
1.
First operation after manufactured
2.
When rest value is initialized or damaged by power failure or discharging
3.
After operating emergency handle
4.
When replacing battery and fuse
5.
After replacing motor and reparing sunroof
Emergency operation
1.
Emergency operation of panorama sunroof should not be performed except in case of closing or opening panorama sunroof when motor is defected.
2.
Panorama sunroof should be closed or opened after removing roof trim using hexgonal wrench. Do not use excessive force.
3.
Perform initialization when necessary according the initialization procedure.

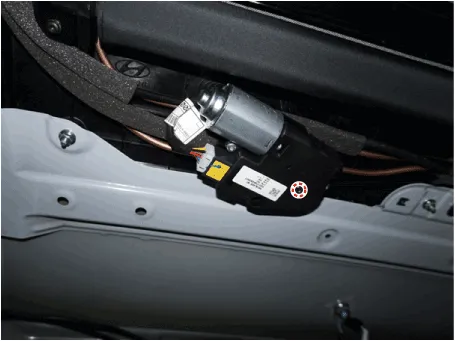

[Movable glass assembly]

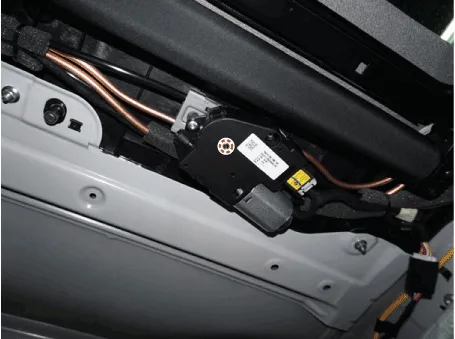

[Roller blind motor]
