Hyundai Santa Fe (TM): Fuses And Relays / Relay Box (Passenger Compartment). Components and components location

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body Electrical System / Fuses And Relays / Relay Box (Passenger Compartment). Components and components location

Components

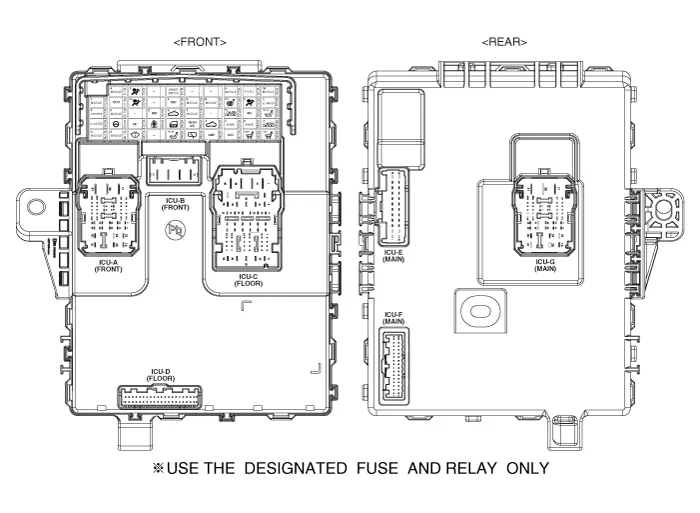

ICU (Integrated Center Control Unit) Junction Block

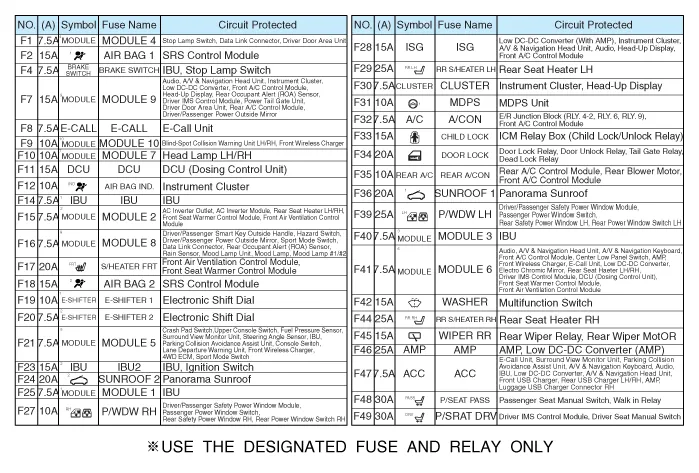

Circuit (ICU Junction Block)
