Hyundai Santa Fe (TM): Body Side Molding / Rear Wheel Guard. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Body Side Molding / Rear Wheel Guard. Repair procedures

Replacement

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
Put on gloves to prevent hand injuries.
1.
Remove the rear tire.
2.

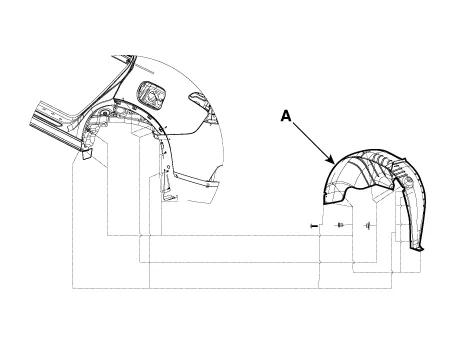

Loosen the mounting clip and remove the rear wheel guard (A).
3.
To install, reverse the removal procedure.

•
Replace any damaged clips (or pin-type retainers).
