Hyundai Santa Fe (TM): Trunk Trim / Rear Transverse Trim. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Trunk Trim / Rear Transverse Trim. Repair procedures

Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Loosen the mounting screws and remove the luggage floor box (A).
2.

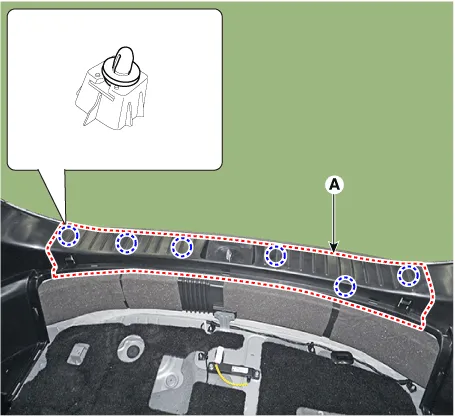

Loosen the mounting clips and remove the rear transverse trim (A).
3.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).

    Component Location 1. Rear Transverse Trim

    Replacement    • Put on gloves to prevent hand injuries.
