Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.

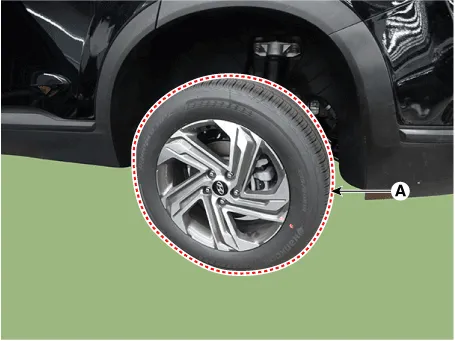

Remove the rear wheel and tire (A) from rear hub.
Tightening torque :
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

•
Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

3.
Remove the rear shock absorber (A) from the body by loosening the bolt.
Tightening torque :
117.7 - 137.3 N.m (12.0 -14.0 kgf.m, 86.8 - 101.3 lb-ft)

4.

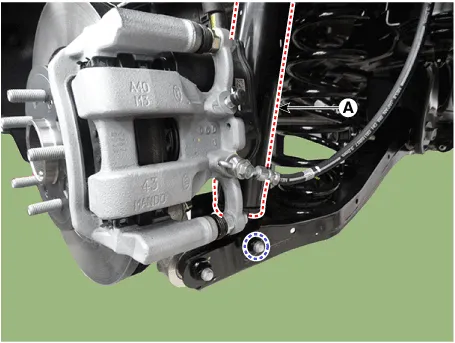

Loosen the bolt and nut and then remove the rear shock absorber (A) from the lower arm.
Tightening torque :
156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb-ft)

Disassembly
1.

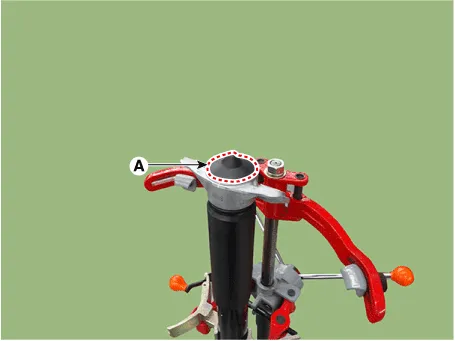

Remove the insulator cap (A).
2.

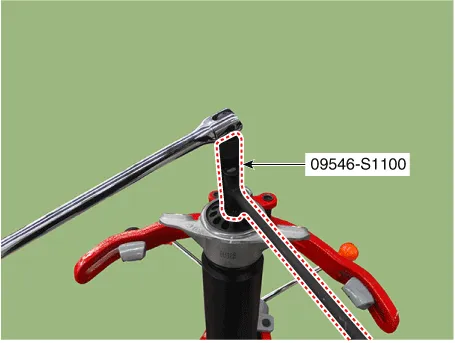

Using the special tool (09546-S1100), install the self locking nut.
3.

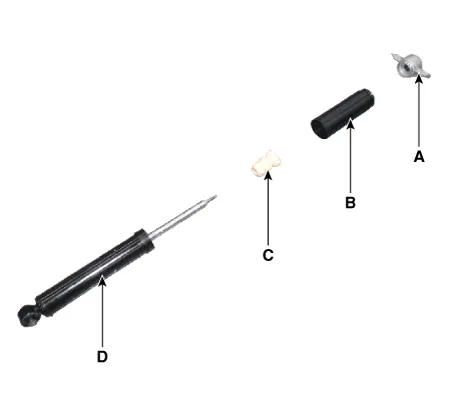

Separate the Insulator assembly (A), dust cover (B), bumper rubber (C), shock absorber (D).
Inspection
1.
Check the rubber parts for damage or deterioration.
2.
Check the shock absorber for abnormal resistance or unusual sounds.
Disposal
1.

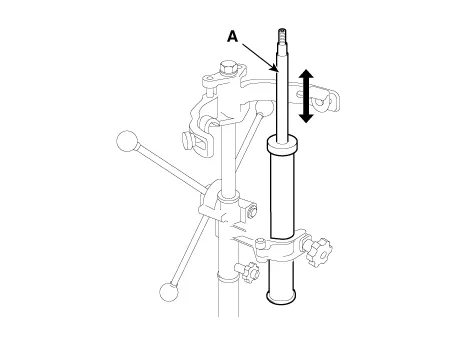

Fully extend the shock absorber rod.
2.

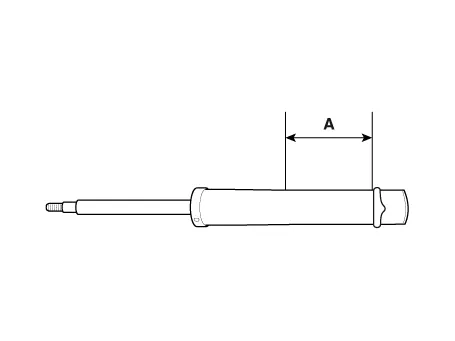

Drill a hole to remove gas from the cylinder.


•
The gas corning out is harmless, but be careful of chips that may fly when drilling. Be sure to use face shield and safety goggles.
Reassembly
1.
To reassembly, reverse the disassembly procedure.
2.
Using SST (09546-3X100), install the lock nut.

•
Do not reuse the self locking nut.
Tightening torque :
29.4 N.m (3.0 kgf.m, 21.7 lb-ft)

3.
Install the lock nut cover (A).
Installation
1.
To install, reverse the removal procedures.
