Hyundai Santa Fe (TM): Rear Suspension System / Rear Shock Absorber. Components and components location
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Suspension System / Rear Suspension System / Rear Shock Absorber. Components and components location

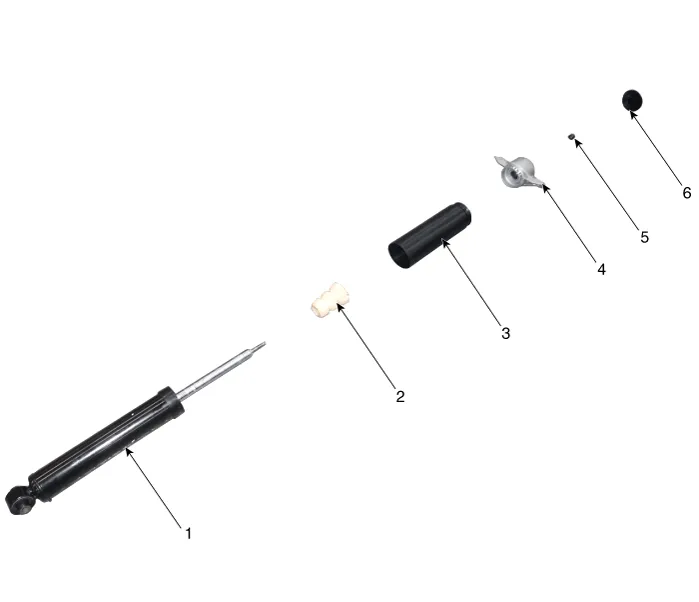

| Components |
| 1. Rear shock
absorber 2. Dust cover 3. Bumper rubber |
4. Insulator
assembly 5. Lock nut 6. Insulator cap |
Components [2WD] 1. Rear shock absorber 2. Rear lower arm 3. Rear stabilizer bar 4. Rear cross member 5.
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2.
