Hyundai Santa Fe (TM): Rear Seat / Rear Seat Back Cover. Repair procedures

Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual / Body (Interior and Exterior) / Rear Seat / Rear Seat Back Cover. Repair procedures

Replacement
[Second row seat assembly]
(LH)

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the second row seat assembly [LH].
(Refer to Rear Seat - "Rear Seat Assembly")
2.

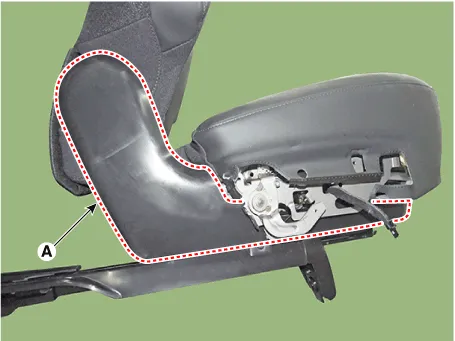

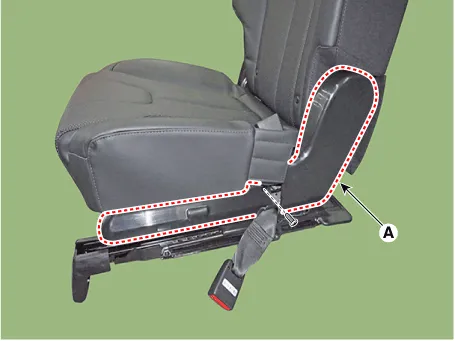

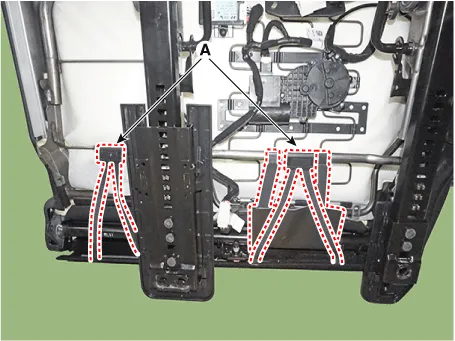

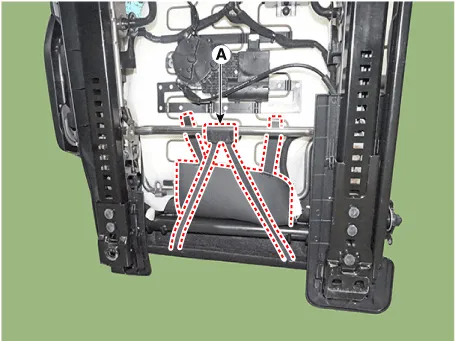

Remove the rear seat lower protector (A).
3.

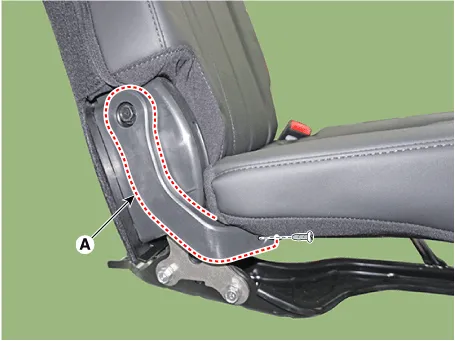

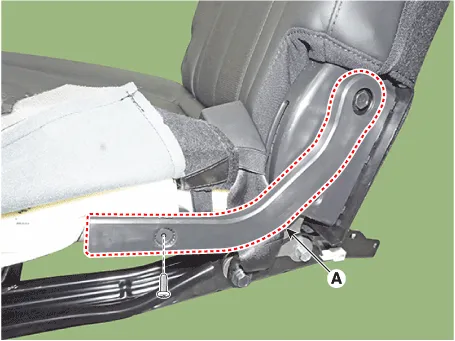

Loosen the mounting screw and remove the rear back hinge cover (A).
4.

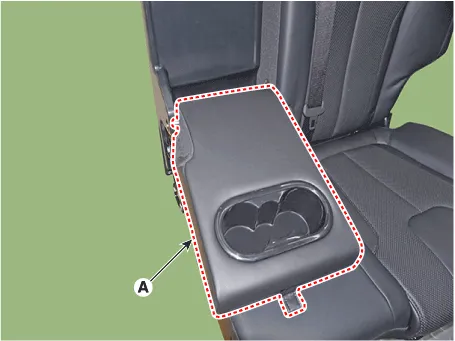

Loosen the mounting bolt and remove the rear back armrest (A).
5.

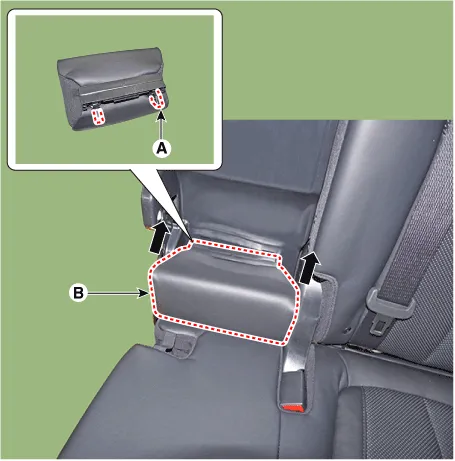

Press the lock pin (A) and remove the rear back armrest pad (B).
6.

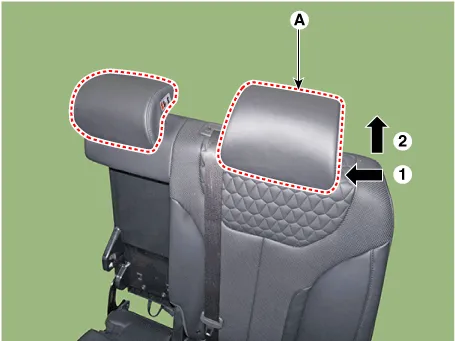

Press the lock pin and remove the rear seat headrest (A).

7.

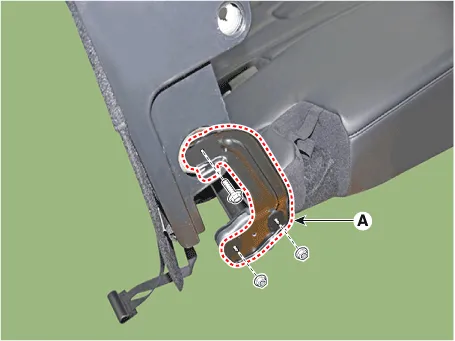

Loosen the mounting bolts and nuts , remove the rear back hinge bracket (A).
8.

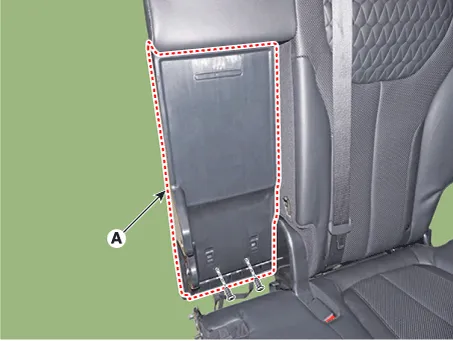

Loosen the mounting screws and remove the rear back armrest panel (A).
9.
Using a screwdriver or remover and remove the rear seat shield outer cover (A).
10.

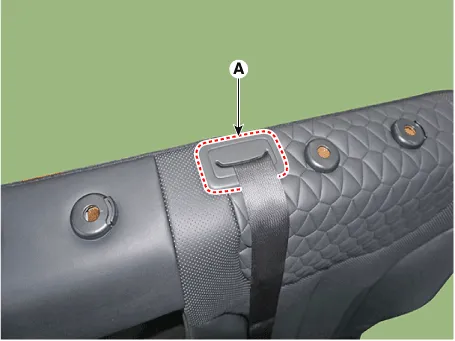

Using a screwdriver or remover and remove the rear center seat belt cover (A).
11.

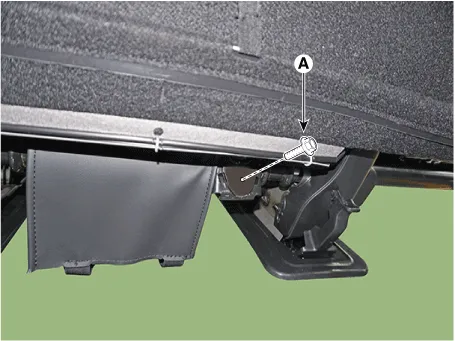

Loosen the rear center seat belt bolt (A).
Tightening torque :
39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

12.

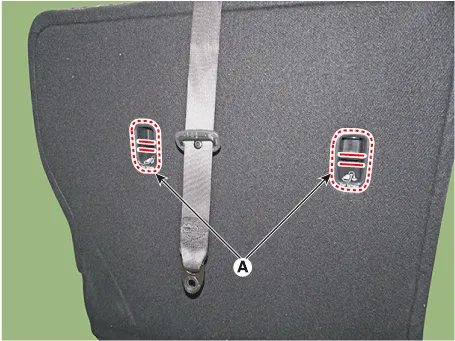

Using a remover and remove the child anchor cover (A).
13.

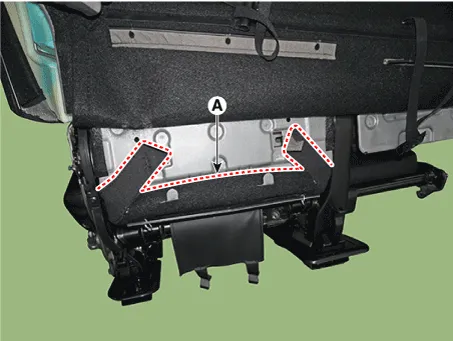

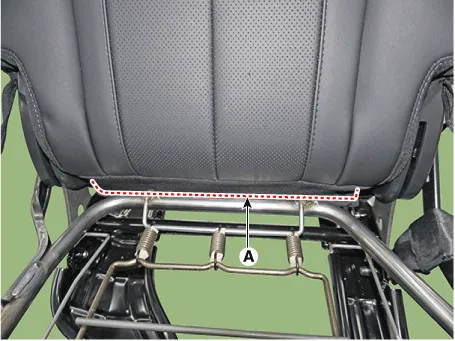

Remove the rear seat lower protector (A).
14.

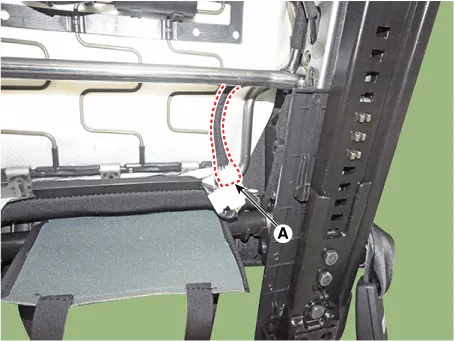

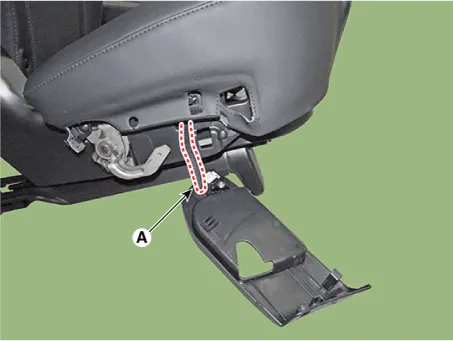

Press the lock pin and separate the seat heater connector (A).
15.

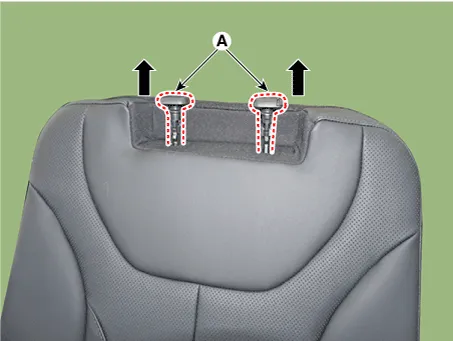

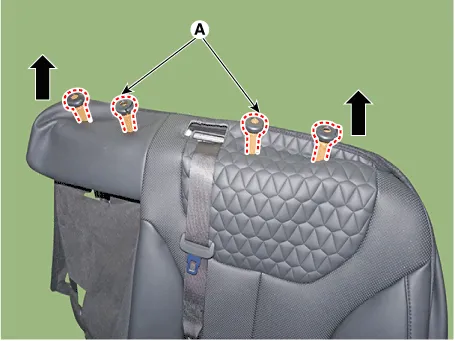

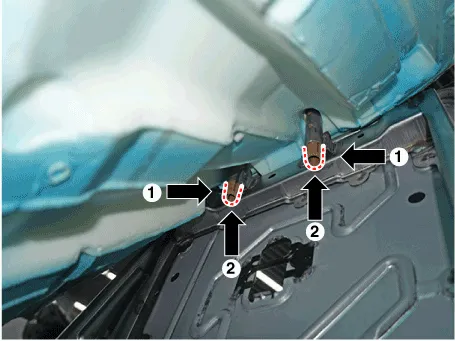

Press the hooks and remove the headrest guide (A).
16.

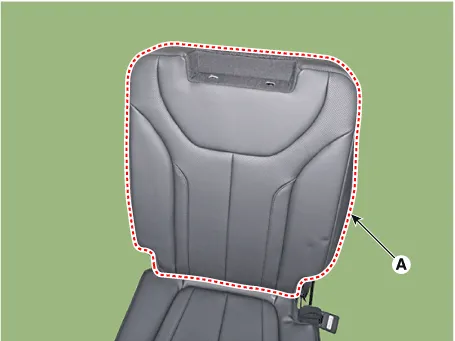

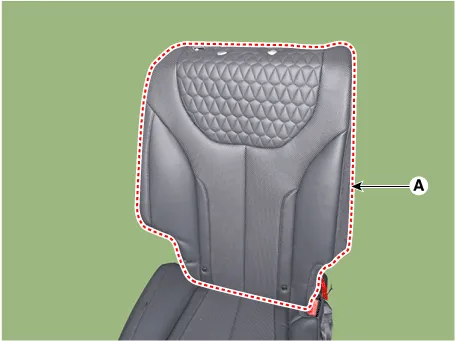

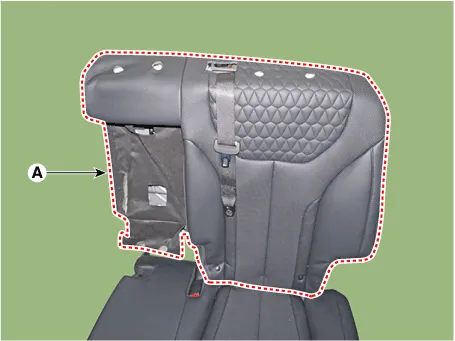

Remove the rear seat back cover assembly (A) from the rear seat frame.
17.

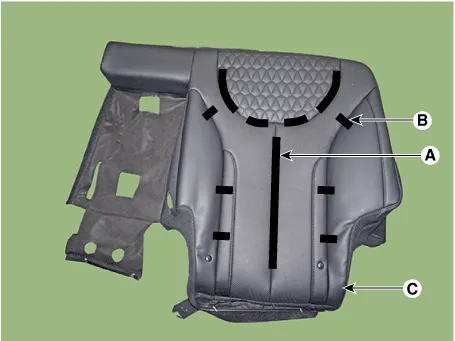

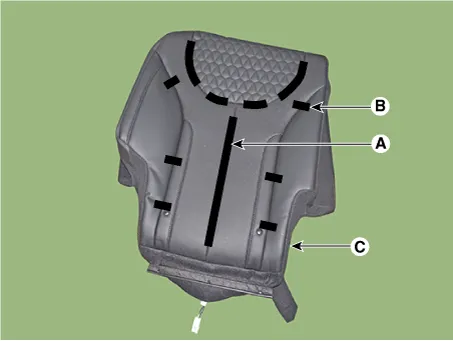

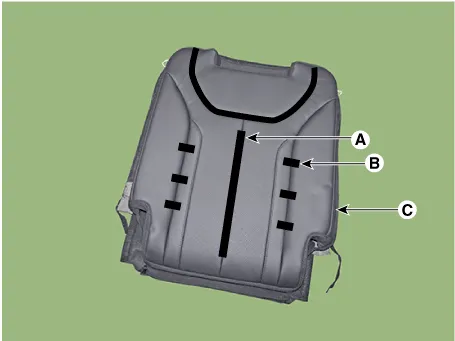

After removing the Velcro tape (A) and tie-down clips (B) inside the rear seat back cover, remove the rear seat back cover (C).

18.
To install, reverse removal procedure.

•
Replace any damaged clips.
(RH)

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the second row seat assembly [RH].
(Refer to Rear Seat - "Rear Seat Assembly")
2.

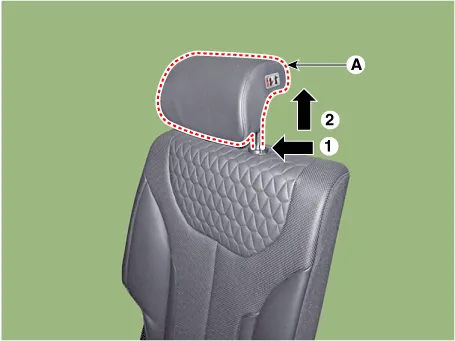

Push the lock pin (B), remove the rear seat headrest (A).
3.
Remove the rear seat lower protector (A).
4.

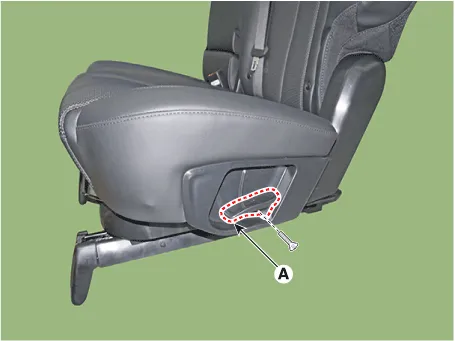

Loosen the mounting screw and remove the rear seat shield inner cover (A).
5.
Press the lock pin and separate the connector (A).
6.
Using a screwdriver or remover and remove the rear seat shield outer cover (A).
7.
Using a remover and remove the child anchor cover (A).
8.
Remove the rear seat back lower protector (A).
9.

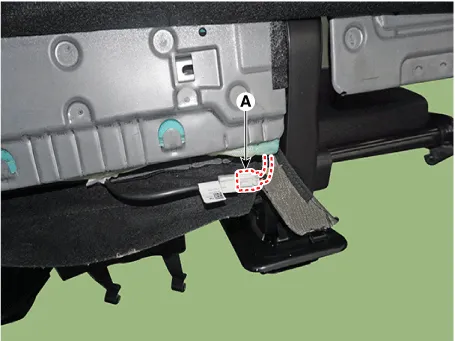

Press the lock pin and separate the heater connector (A).
10.

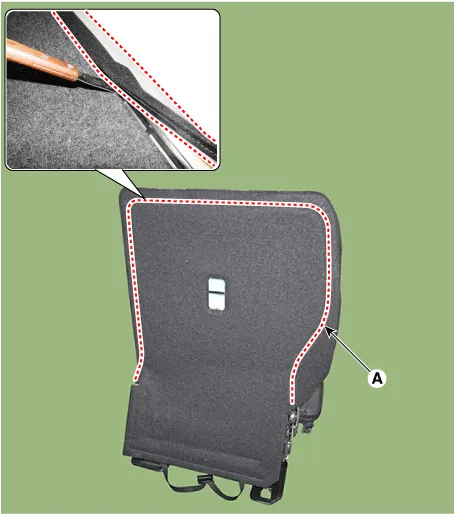

Using a screwdriver or remover and remove the rear seat back cover (A).
11.

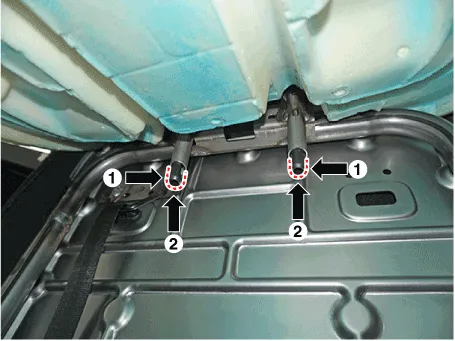

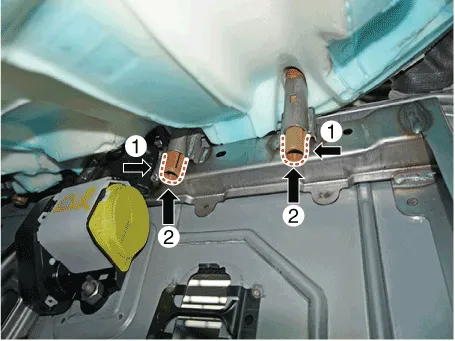

Press the hooks and remove the headrest guide (A).
12.

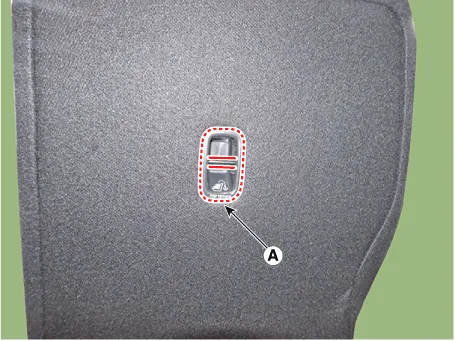

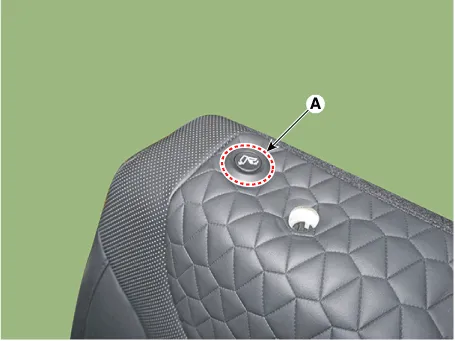

Using a remover and remove the rear seat back folding swich (A).
13.
Press the lock pin and separate the rear seat back folding swich connector (A).
14.
Remove the rear seat back cover assembly (A) from the rear seat frame.
15.
After removing the Velcro tape (A) and tie-down clips (B) inside the rear seat back cover, remove the rear seat back cover (C).

16.
Install in the reverse order of removal.

•
Replace any damaged clips.
[Third row seat assembly]

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the third row seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.

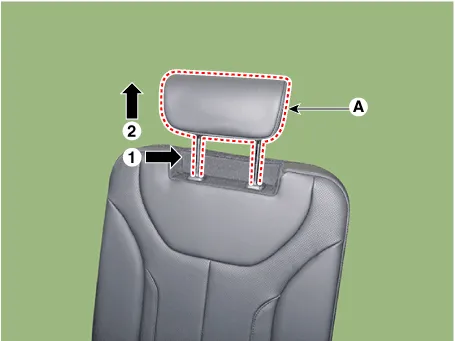

Press the lock pin and remove the headrest (A).
3.

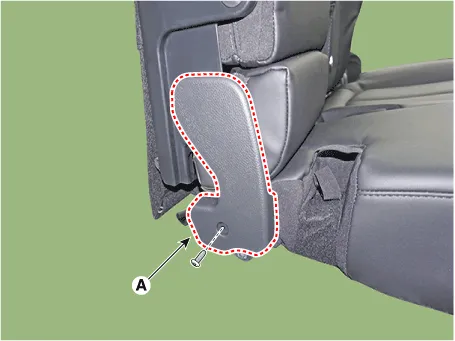

Loosen the mounting screw and remove the rear seat outer cover (A).
4.
Loosen the mounting screw and remove the rear seat inner cover (A).
5.

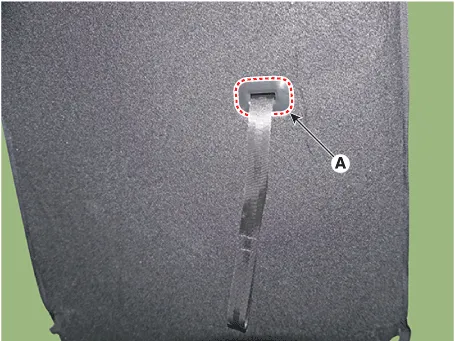

Remove the rear seat strap cover (A).
6.

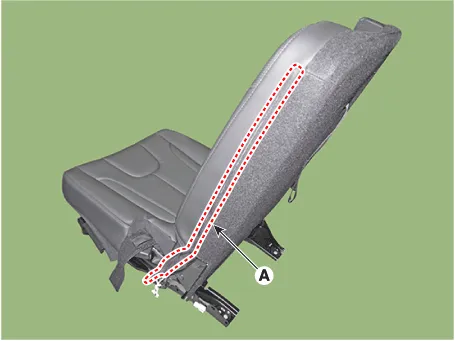

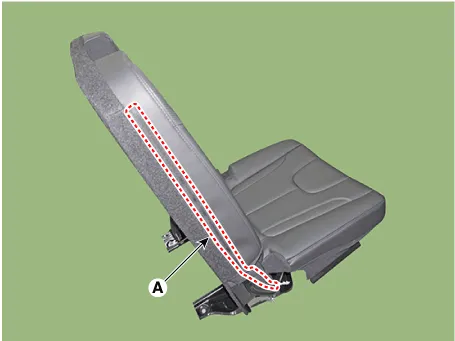

Open the rear seat back cover side zipper(A).
[LH]

[RH]
7.
Remove the seat back cover lower protector (A).
8.
Press the hooks and remove the headrest guide (A).
9.
Remove the rear seat back cover assembly (A) from the rear seat frame.
10.
After removing the Velcro tape (A) and tie-down clips (B) inside the rear seat back cover, remove the rear seat back cover (C).

11.
Install in the reverse order of removal.

•
Replace any damaged clips.
