Hyundai Santa Fe (TM): Rear Seat / Rear Seat Assembly. Repair procedures
| Replacement |
| 1. |

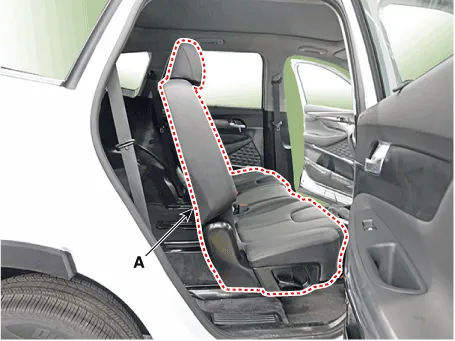

Push the second row seat assembly (A) towards the front of the vehicle
as far as possible.
|
| 2. |
Loosen the second center seat belt buckle mounting bolt (A).
|
| 3. |

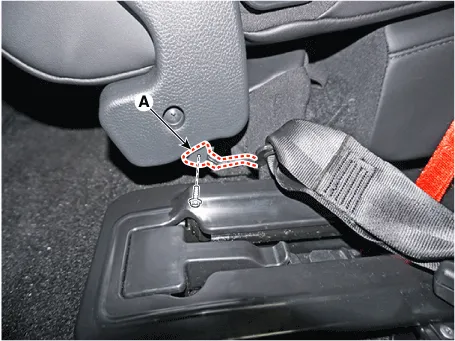

Using a screwdriver and remove the rear seat rear block cover (A).
|
| 4. |

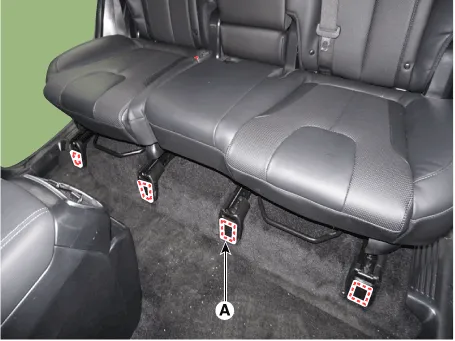

Loosen the second row seat rear mounting bolts.
|
| 5. |
Push the second row seat assembly towards the rear of the vehicle as
far as possible.
|
| 6. |
Using a screwdriver and remove the rear seat front block cover (A).
|
| 7. |

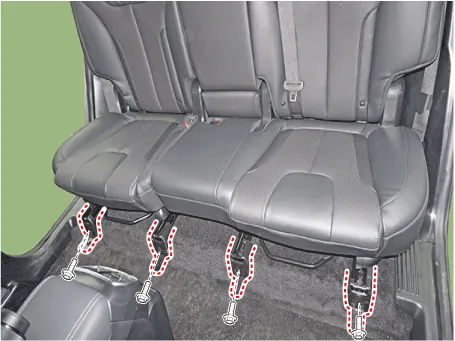

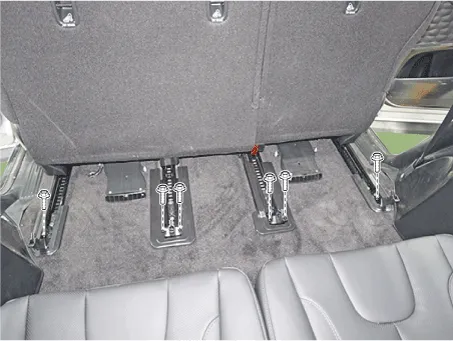

Loosen the second row seat front mounting bolts.
|
| 8. |

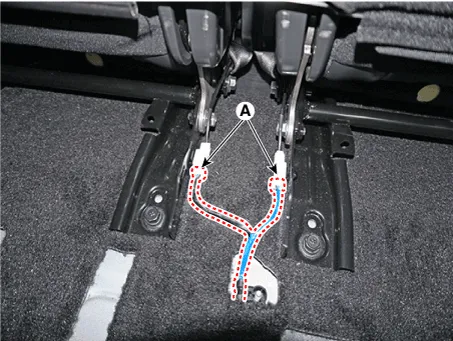

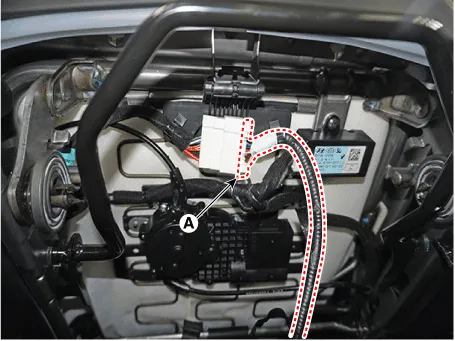

Press the lock pin and separate the connector (A).
|
| 9. |
To install, reverse removal procedure.
|
| 1. |

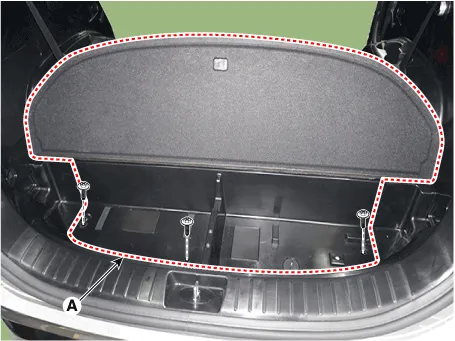

After loosening the mounting screws, then remove the luggage floor box
(A).
|
| 2. |

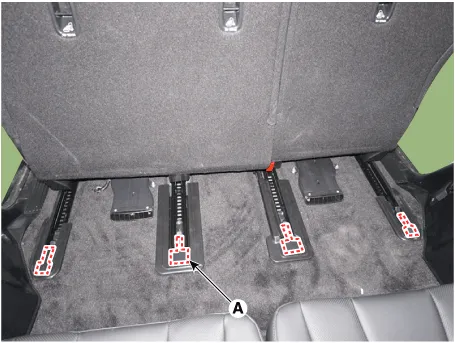

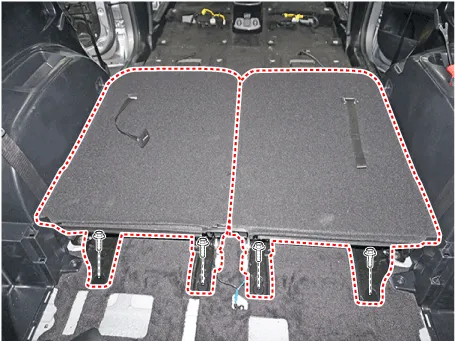

Loosen the third row seat assembly rear mounting bolts.
|
| 3. |

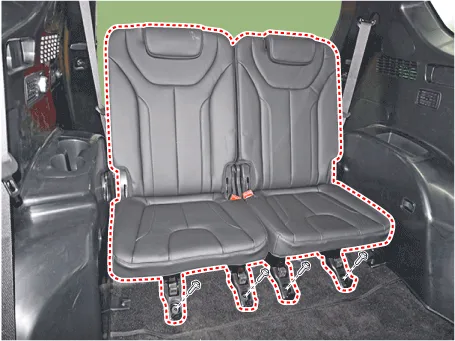

Loosen the mounting bolts and remove the third row seat assembly.
|
| 4. |
Press the lock pin and separate the connector (A).
|
| 5. |
To install, reverse removal procedure.
|
