Replacement

•
Put on gloves to prevent hand injuries.

•
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
•
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
•
Take care not to bend or scratch the trim and panels.
•
Once the rear pillar trim is removed, be sure to replace the clips with new ones.
1.
Remove the luggage side trim.
(Refer to Interior Trim - "Luggage Side Trim")
2.

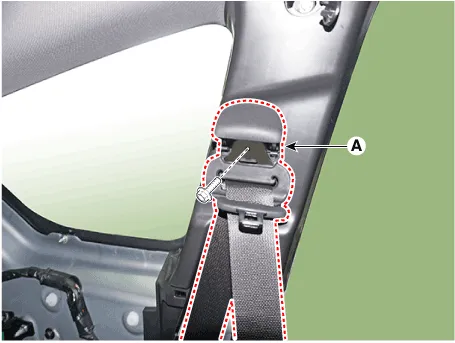

After loosening the mounting bolt and remove the second row seat belt upper anchor (A).
3.

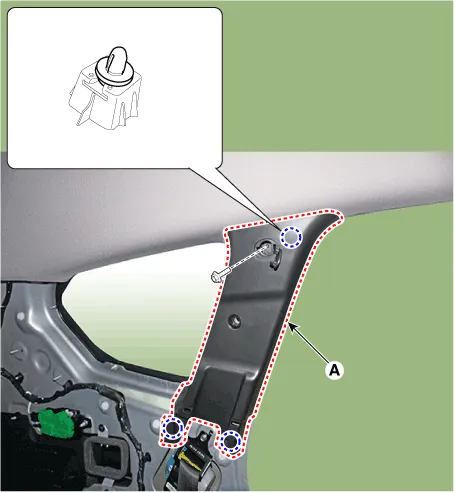

After loosening the mounting bolts, remove the rear pillar trim (A).
4.
To install, reverse removal procedure.

•
Replace any damaged clips (or pin-type retainers).
•
Once the front pillar trim is removed, be sure to replace the clip (B) with new ones.

    Component Location 1. Rear Pillar Trim
