Hyundai Santa Fe (TM): Rear Heater / Rear Evaporator Core. Repair procedures
| Replacement |
| 1. |
Remove the rear heater & A/C unit.
(Refer to Rear Heater - "Rear Heater Unit")
|
| 2. |

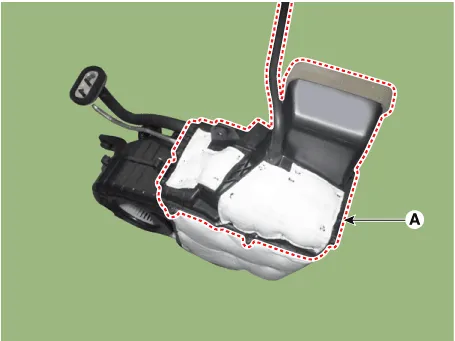

Loosen the mounting screws and remove the rear A/C lower case (A).
|
| 3. |

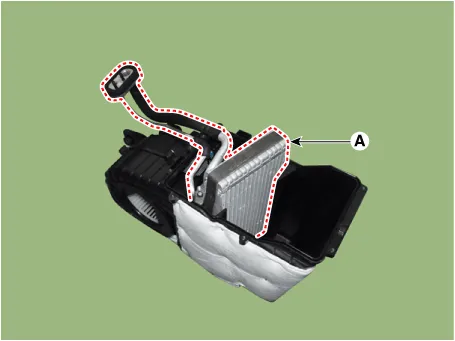

Remove the rear evaporator core (A).
|
| 4. |
Install in the reverse order of removal.
|
Replacement • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the luggage side trim [RH].
Other information:
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Auto Defogging Actuator. Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the auto defogging connector. 3. Verify that the auto defogging actuator operates to the open position when connecting 12V to terminal 3 and grounding terminal 6.
Hyundai Santa Fe (TM) 2019-2023 Service and Repair Manual: Description and operation
Description Back view camera will activate when the backup light is ON with the ignition switch ON and the shift lever in the R position. This system is a supplemental system that shows behind the vehicle through the H/UNIT or the ECM (Reverse Display Room Mirror) mirror while backing-up.
